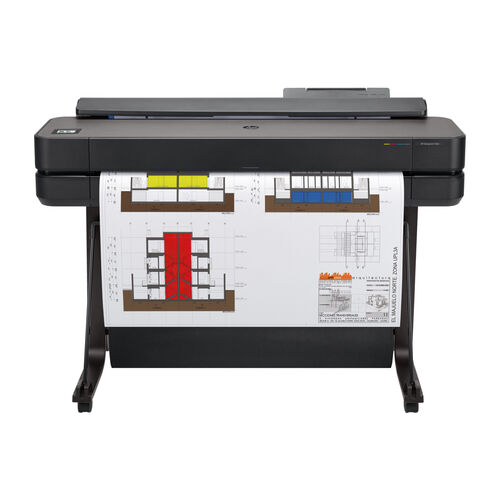

HP DesignJet T650 36” Printer (2025 Edition) (5HB10D)
-
Please contact us on 01905 454 598 for a quote
-
Description
Produces A1 prints in just 25 seconds using HP Thermal Inkjet technology at up to 2400 × 1200 dpi resolution. Includes a built-in stand, media bin, automatic sheet feeder & wireless connectivity.
HP DesignJet T650 36” Printer (2025 Edition) (5HB10D): Combines compactness with broad-format power, offering a 914mm (36″) print width while occupying minimal office space thanks to its built-in stand. It delivers fast A1 output in just 25 seconds per page, achieving around 82 A1 prints per hour . Using HP Thermal Inkjet technology, the printer produces sharp detail at up to 2400 × 1200 optimised dpi, rendering crisp lines and vibrant colour for technical plans and visual presentations.
Media handling on the T650 is sophisticated yet user‑friendly. It supports roll feed and both auto and manual sheet feeding, accommodating A4, A3, A2, A1 and full A0 sizes. This versatility is complemented by an automatic horizontal cutter and integrated media bin, which neatly collects prints,streamlining workflows with minimal supervision. The printer also works with HP Click and HP Wolf Essential Security to ensure efficient job management and data protection.
Energy consumption is impressively efficient: the T650 draws under > 35 W during printing, falls to 5.6 W when ready 2.1 W in sleep, and just > 0.2 W when fully off. Ink management is precise, using 5.5 pL droplets for cyan, magenta and yellow, and 12 pL for black, with 1376 nozzles for consistent output quality. The printer ships with four individual cartridges dye‑based for cyan, magenta and yellow and black ensuring vibrant results and efficient replacements as needed
Designed with sustainability in mind, the T650 incorporates up to 40% recycled plastic in its construction. It also features HP Click software for streamlined printing processes and HP Wolf Essential Security features to safeguard sensitive information. The printer's compact dimensions (1013mm x 605mm x 932mm) and weight of 29.5kg make it suitable for small office spaces.
Media handling capabilities are enhanced by an automatic horizontal cutter and a media bin for organised output collection. The printer's energy efficiency is notable, consuming less than 35W during printing operations.
The HP DesignJet T650 offers a blend of speed, quality, and sustainability making it an ideal choice for professionals requiring reliable large-format printing solutions.Advanced features and compact design ensure it meets the demands of modern work environments.
HP Wolf Essential Security is built in to help protect against unauthorised access and ensure the confidentiality of design files. The T650 is ENERGY STAR® certified and EPEAT-registered, reflecting HP’s commitment to more sustainable printing. The printer includes an automatic power scheduler and has been designed to reduce energy usage during standby periods. Its packaging is also more environmentally responsible, using predominantly fibre-based materials.

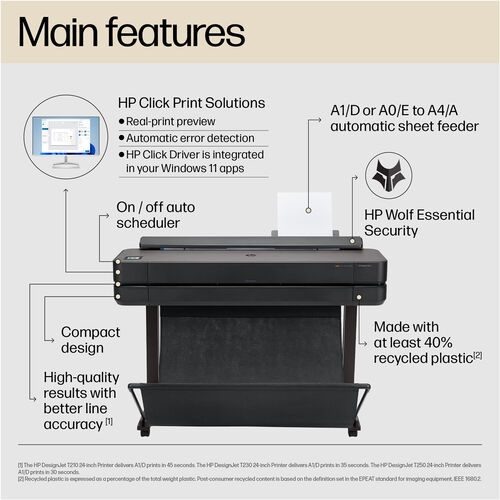

MAIN FEATURES:
1. HP CLICK-PRINT SOLUTIONS:
Submit print jobs easily with the HP Click driver and desktop application for one-click printing from PDFs and other formats.

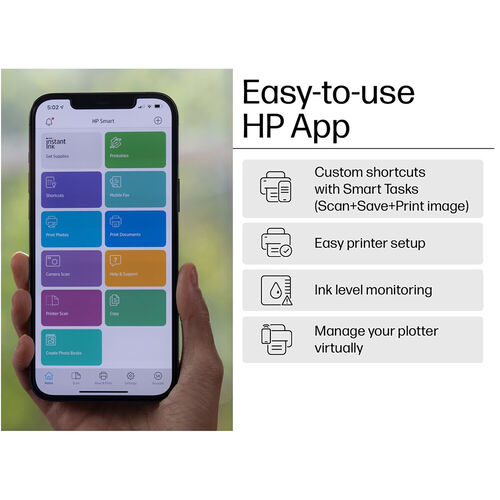

2. HP APP:
Send print jobs and monitor your plotter from virtually anywhere using the HP app, available on mobile devices.
3. ENERGY SAVINGS:
Reduce energy use by up to 65% with the automatic on/off scheduler and efficient ink maintenance routines built into the printer.
4. RESPONSIBLY DESIGNED:
Built with at least 40% recycled plastic and the first HP large-format printer to include recycled metal components.
5. HP WOLF ESSENTIAL SECURITY:
Provides essential protection with built-in HP Wolf Essential Security to help safeguard your printer and data from cyber threats.
6. A4/A TO A0/E FEEDER ACCESSORY:
Included. Enables seamless printing of mixed-size documents from A4/A to A0/E without the need to manually change media.
7. HP BRIGHT OFFICE INKS:
Achieve superior print quality — HP Bright Office inks improve line accuracy and expand colour gamut by up to 34%.
Equipped with several essential accessories to ensure a seamless printing experience right out of the box. These accessories are designed to enhance the printer's functionality and user convenience.
INCLUDED ACCESSORIES
- BUILT-IN STAND: Provides stable support for the printer, ensuring optimal operation and accessibility.
- AUTOMATIC SHEET FEEDER: Allows for efficient handling of different media sizes, including A4 and A3, facilitating smooth transitions between various print jobs.
- MEDIA BIN: Collects printed output neatly, keeping your workspace organised and preventing prints from getting damaged or lost.
- AUTOMATIC HORIZONTAL CUTTER: Enables precise and clean cuts of printed media, reducing the need for manual trimming and ensuring professional-quality results.
-
Tech specs
Memory: 1 GB
What's in the box: HP DesignJet T650 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Security features: HP Wolf Essential Security: Secure boot with HW root of trust, Firmware Code, Signature Validation, Automatic FW Updates, HTTPS Redirect enabled by default, SNMPv1/2 read-only by default, SNMPv3 disabled by default, Write-protected memory, HP Cartridge Security, Unique password, Disable USB ports, TLS 1.2, 802.1x, IPv4 & IPv6 Compatibility, CA/JD Compatibility
Weight: 35.4 kg
Package weight: 56 kg

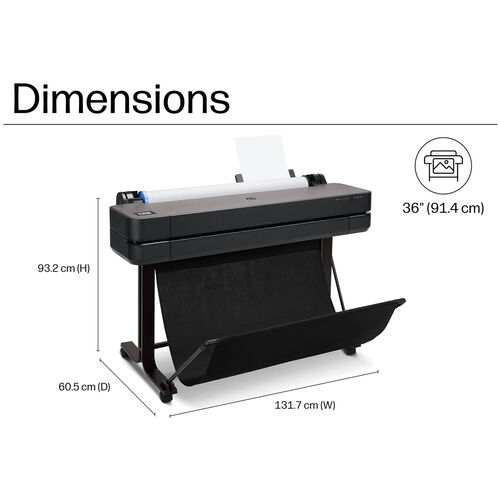

Dimensions (W x D x H): 1317 x 605 x 932 mm
Package dimensions (W x D x H): 1470 x 575 x 590 mm
PowerInput voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Manufacturer Warranty: Two-year limited hardware warranty.
Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges
Ink types: Dye-based (C, M, Y)
pigment-based (K)Print Cartridge/Bottle, Colour(s): Cyan, magenta, yellow, black
Ink drop: 5.5pl (C, M, Y)
12 pl (K)Print cartridge/bottle volume: 80ml (K), 38ml (K) ,29ml (C, M, Y) per cartridge
Print head nozzles: 1376
Print heads: 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines
Functions: Print
Print quality colour (best): Up to 2400 x 1200 optimised dpi
Internal Storage: None
Print speed: 25 sec/page on A1, 82 A1 prints per hour[1]
Print technology: HP Thermal Inkjet
Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Printer drivers included: Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11
Model size: 914 mm
Remote print enabledYes
Non-printable area (cut-sheet): 5 x 5 x 5 x 17mm (manual feed), 5 x 5 x 5 x 5mm (input tray)
Non-printable area (roll media): 5 x 5 x 5 x 5mm
Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Line accuracy: ±0.1%[3]
Theoretical minimum line width: 0.02 mm
Print multi-size files in one click: Yes
Maximum optical density (black): 8 L* min/2.10 D[4]
Media sizes supported: Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1, A0Media sizes, custom: Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 914 x 1897 mmMedia types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)Media width, maximum: 914 mm
Supported Primary Applications: Line drawings, Presentations, Renderings
Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610mm x 45.7m, C6019B HP Coated Paper (FSC® certified)[5] (recyclable) 610mm x 45.7m, C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610mm x 30.5m
Media sizes standard (metric rolls): 279 to 914mm
Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Roll external diameter: 100mm
Roll maximum input: 1
Roll maximum weight: 6.2 kg
Media thickness: Up to 11.8 mil
Media thickness maximum (metric): Up to 0.3 mm
-
Model Comparison
-
Sustainability
-
Accessories & Ink Supplies
ACCESSORIES:
HP Designjet 36" Spindle | B3Q37A
INK SUPPLIES:
HP 713 | DesignJet Printhead Replacement Kit | 3ED58A
HP 712 | 29ml Cyan DesignJet Ink Cartridge | 3ED67A
HP 712 | 29ml Magenta DesignJet Ink Cartridge | 3ED68A
HP 712 | 29ml Yellow DesignJet Ink Cartridge | 3ED69A
HP 712 | 38ml Black DesignJet Ink Cartridge | 3ED70A
HP 712 | 80ml Black DesignJet Ink Cartridge | 3ED71A
HP 712 | 3-pack 29ml Cyan DesignJet Ink Cartridge | 3ED77A
HP 712 | 3-pack 29ml Magenta DesignJet Ink Cartridge | 3ED78A
HP 712 | 3-pack 29ml Yellow DesignJet Ink Cartridge | 3ED79A
-
