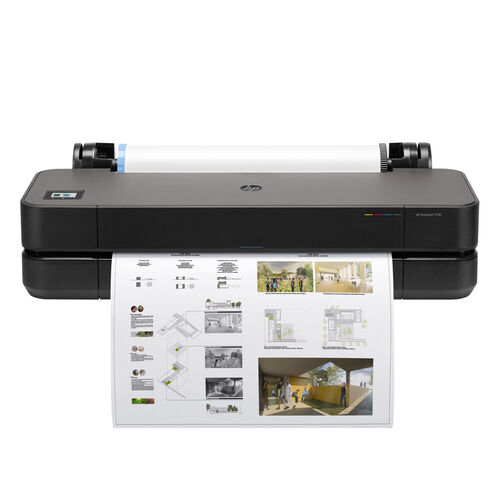

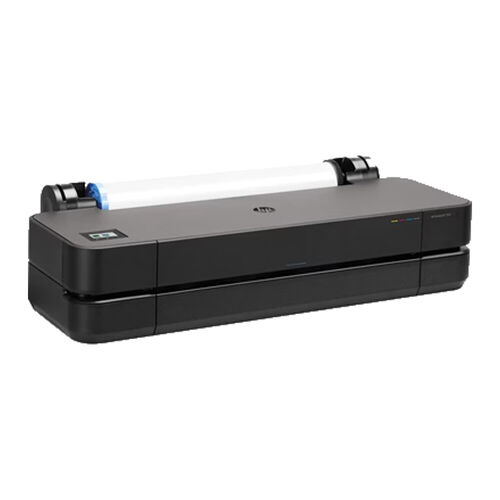

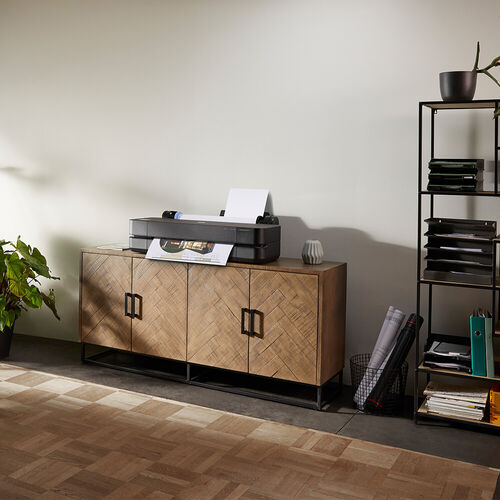

HP DesignJet T230 24” Printer (2025 Edition) (5HB07D)
-
Please contact us on 01905 454 598 for a quote
-
Description
Offers compact A1 printing with sharp detail, Wi-Fi connectivity, HP Click software. Ideal for architects & engineers and features a sustainable design made with up to 40% recycled plastic.
HP DesignJet T230 24” Printer (2025 Edition) (5HB07D): A compact, high-performance large-format printer designed for professionals who require reliable and precise A1 output. Engineered for architects, engineers and construction specialists, the T230 delivers detailed line drawings and vibrant colour renders with HP Bright Office Inks. With print speeds as fast as 35 seconds per A1 page and optimised resolution up to 2400 x 1200 dpi, it combines productivity and quality in a space-saving design suited to modern workspaces.
The printer includes HP Click software, allowing users to submit print jobs quickly and easily from PDFs and other file types with one click. Whether working from a desktop or a mobile device, users can also print and manage jobs remotely using the HP app. Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB 2.0 connectivity offer seamless integration into existing networks, while compatibility with an optional sheet feeder and stand adds versatility.
This model is designed with sustainability in mind. The T230 is constructed from over 40% recycled plastic and includes 5% recycled metal, making it the first HP large-format plotter to do so. Packaging is fully fibre-based with a 73% reduction in plastic compared to previous designs, and ink maintenance routines use up to 96% less ink. Additionally, the built-in auto on/off scheduler contributes to energy savings of up to 65%, helping to reduce operational costs and environmental impact.
Security is also a key focus. HP Wolf Essential Security provides baseline protection against unauthorised access and cyber threats, ensuring sensitive design files and network activity remain secure. For firms managing multiple devices or working remotely, this level of built-in protection is a significant benefit.

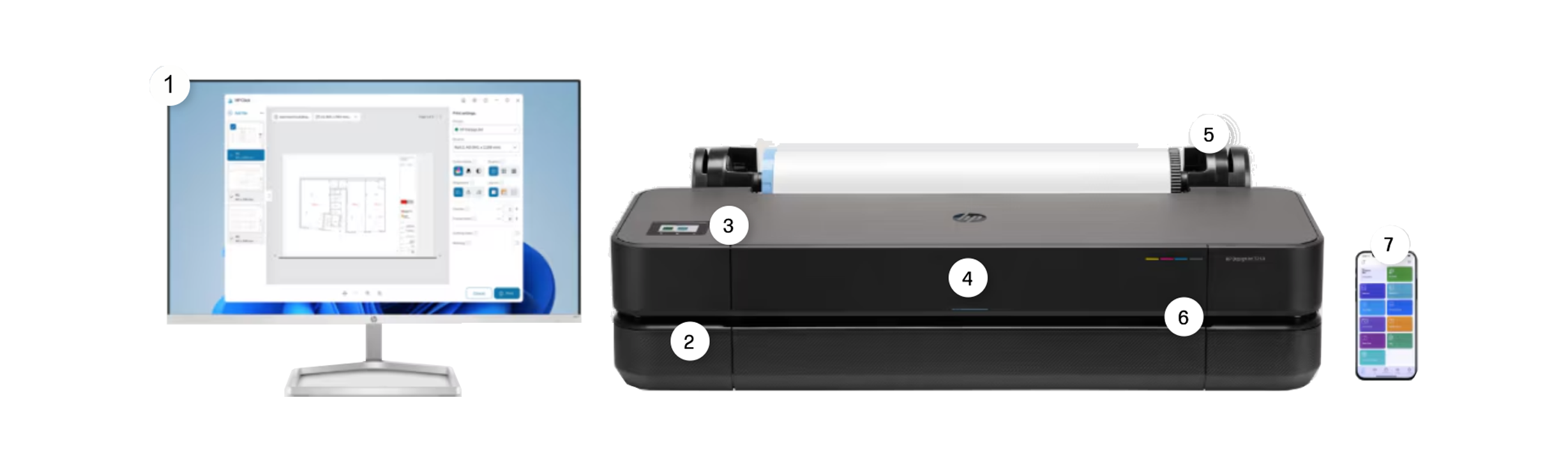

MAIN FEATURES:
1. HP CLICK-PRINT SOLUTIONS:
Enjoy a radically simplified printing experience with intuitive job submission via the HP Click driver and desktop application.
2. ENVIRONMENTALLY RESPONSIBLE DESIGN:
Constructed with at least 40% recycled plastic and featuring the first HP large-format plotter to include recycled metal components.
3. ENERGY EFFICIENT OPERATION:
Reduce energy use by up to 65% with the automatic on/off scheduler and benefit from optimised ink maintenance processes.
4. HP WOLF ESSENTIAL SECURITY:
Provides essential protection to help safeguard your printer and plotter against everyday cyber threats.
5. A4/A TO A1/D FEEDER ACCESSORY:
An optional accessory allows seamless printing of varied paper sizes without manually changing the media source.
6. HP BRIGHT OFFICE INKS:
Produce high-quality prints with improved line accuracy and a wide colour gamut.

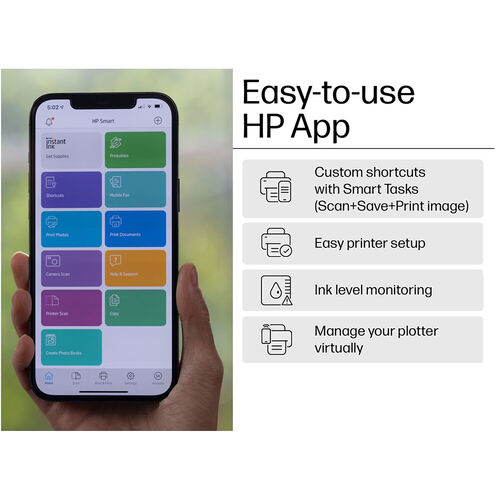

7. HP APP FUNCTIONALITY:
Send print jobs and manage your printer remotely at any time from virtually anywhere using the HP app.
SUMMARY:
The HP DesignJet T230 24” Printer offers compact, fast and accurate A1 printing with excellent sustainability credentials and built-in security. It’s an ideal choice for design professionals who need dependable performance and eco-conscious design in a modern office environment.
-
Tech specs
Memory: 512 MB
What's in the box: HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Security features: HP Wolf Essential Security: Secure boot with HW root of trust, Firmware Code, Signature Validation, Automatic FW Updates, HTTPS Redirect enabled by default, SNMPv1/2 read-only by default, SNMPv3 disabled by default, Write-protected memory, HP Cartridge Security, Unique password, Disable USB ports, TLS 1.2
802.1x, IPv4 & IPv6 Compatibility, CA/JD CompatibilityWeight: 21.5 kg
Package weight: 27 kg

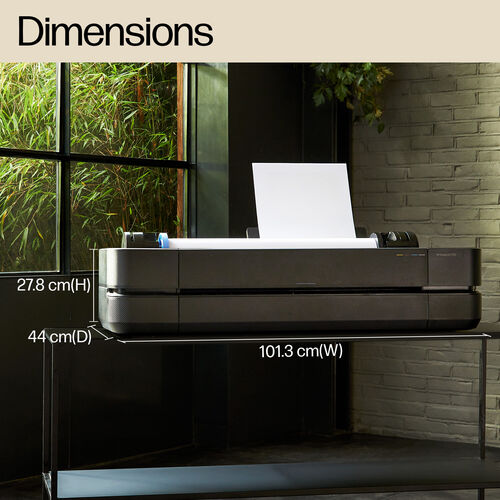

Dimensions (W x D x H):1013 x 440 x 285 mm
Package dimensions (W x D x H): 1155 x 575 x 405 mm
PowerInput voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Manufacturer Warranty: One-year limited hardware warranty
Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges
Ink types: Dye-based (C, M, Y) pigment-based (K)
Print Cartridge/Bottle, Colour(s): Cyan, magenta, yellow, black
Ink drop: 5.5 pl (C, M, Y) 12 pl (K)
Print cartridge/bottle volume: 80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Print head nozzles: 1376
Print heads: 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines
Functions: Print
Print quality color (best): Up to 2400 x 1200 optimised dpi
Internal Storage: None
Print speed: 35 sec/page on A1, 68 A1 prints per hour[1]
Print technology: HP Thermal Inkjet
Print languages: JPEG, URF
Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11
Model size: 610 mm
Remote print enabled: Yes
Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media): 5 x 5 x 5 x 5 mm
Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Line accuracy: ±0.1%[3]
Theoretical minimum line width: 0.02 mm
Print multi-size files in one click: Yes
Maximum optical density (black): 8 L* min/2.10 D[4]
Media sizes supported: A4, A3, A2, A1
Media sizes, custom: 210 x 279 to 610 x 1897 mm
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280 g/m²
Media width, maximum: 610 mm
Supported Primary Applications: Line drawings, Presentations, Renderings
Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610mm x 45.7m, C6019B HP Coated Paper (FSC® certified) (recyclable) 610mm x 45.7m, C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610mm x 30.5m
Media sizes standard (metric rolls): 279 to 610mm
Finished output handling: Sheet feed, roll feed, automatic horizontal cutter
Roll external diameter: 100mm
Roll maximum input: 1
Roll maximum weight: 4.1kg
Media thickness: Up to 11.8mil
Media thickness (metric): Up to 0.3mm
Technical features: Wi-Fi, Colour Touchscreen, Start-up Ink Cartridges, USB port for PC connection, Max resolution 2400 x 2400 dpi, Roll cover accessory, Automatic sheet feeder accessory, Output stand bin accessory
-

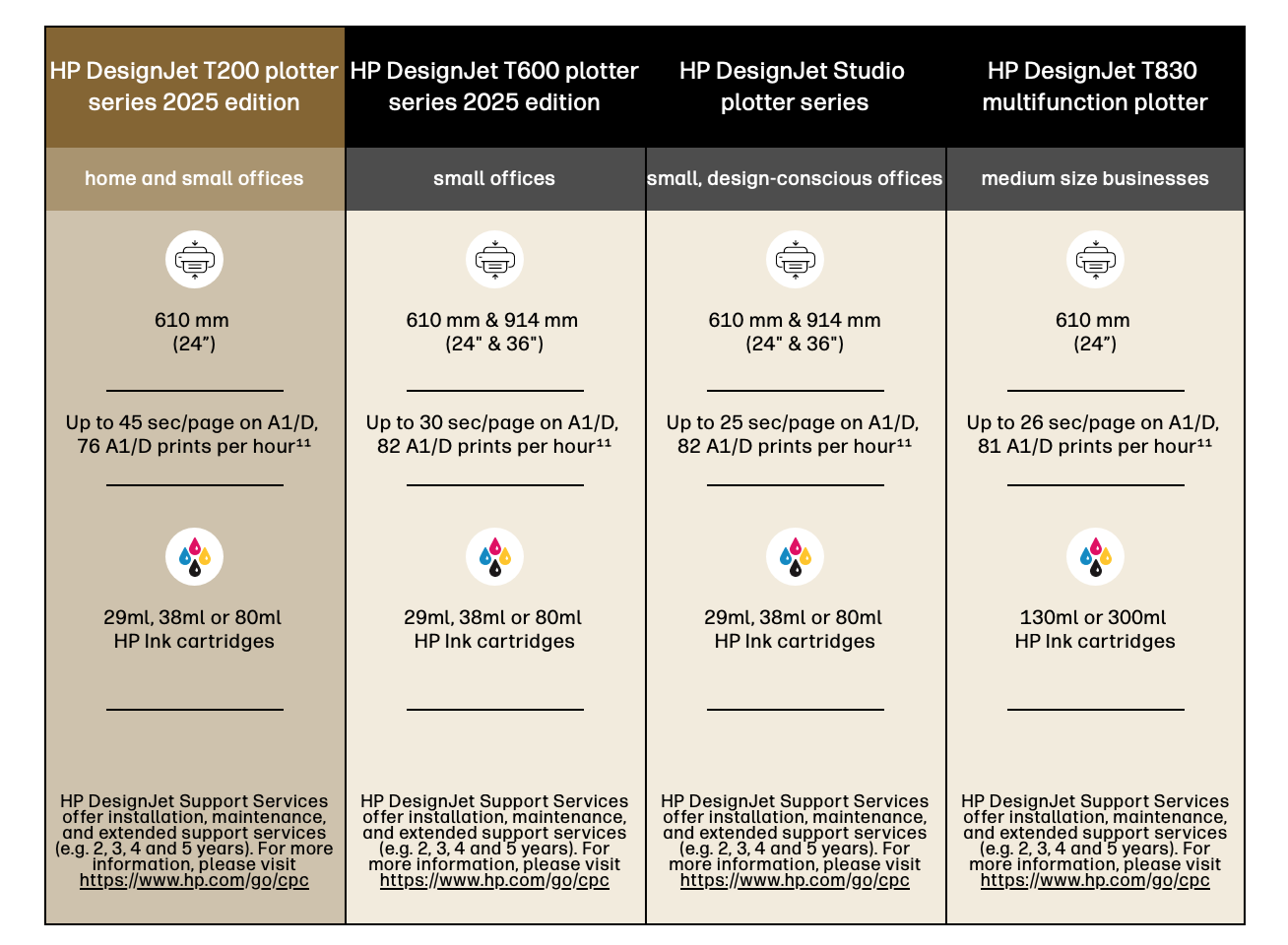

Model Comparison
-
Sustainability
-
Accessories & Ink Supplies
ACCESSORIES:
HP Designet T200/T600 24” Printer Stand (3C753A)
HP DesignJet T200/T600 Automatic Sheet Feeder (8AJ60A)
HP DesignJet T200/T600 24“ Roll Cover (9GF94A)
HP DesignJet 24” Spindle (B3Q36A)

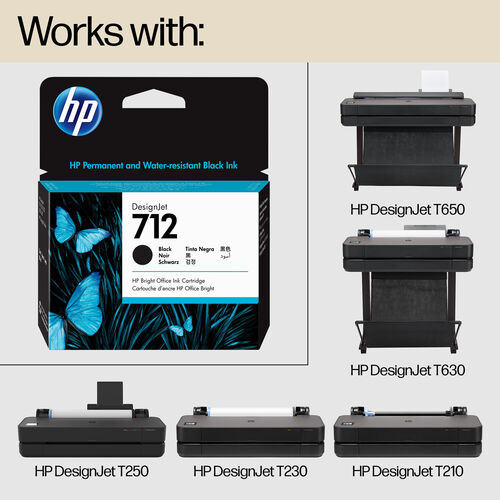

INK SUPPLIES:
HP 713 | DesignJet Printhead Replacement Kit | 3ED58A
HP 712 | 29ml Cyan DesignJet Ink Cartridge | 3ED67A
HP 712 | 29ml Magenta DesignJet Ink Cartridge | 3ED68A
HP 712 | 29ml Yellow DesignJet Ink Cartridge | 3ED69A
HP 712 | 38ml Black DesignJet Ink Cartridge | 3ED70A
HP 712 | 80ml Black DesignJet Ink Cartridge | 3ED71A
HP 712 | 3-pack 29ml Cyan DesignJet Ink Cartridge | 3ED77A
HP 712 | 3-pack 29ml Magenta DesignJet Ink Cartridge | 3ED78A
HP 712 | 3-pack 29ml Yellow DesignJet Ink Cartridge | 3ED79A
-
