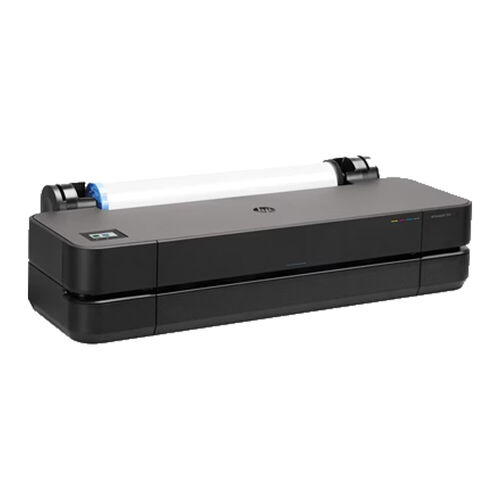

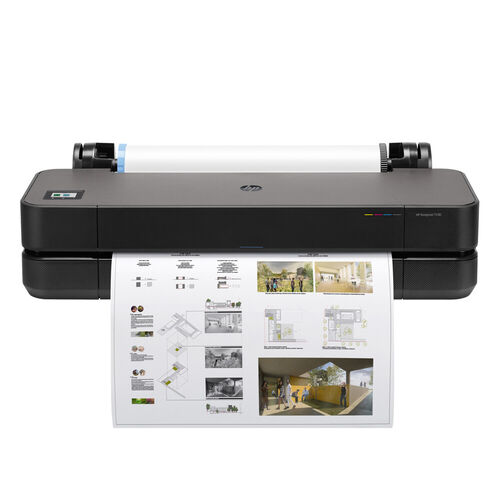

HP DesignJet T250 24” Printer (2025 Edition) (5HB06D)
-
Please contact us on 01905 454 598 for a quote
-
Description
Offers compact A1 printing with enhanced speed, up to 34% more colour gamut, Wi-Fi connectivity and sustainable design made with over 40% recycled plastic.
HP DesignJet T230 24” Printer (2025 Edition) (5HB07D) and the HP DesignJet T250 24” Printer (2025 Edition) (5HB06D) are both compact large-format printers designed for technical professionals and creatives who require A1 printing capabilities in a small footprint. Both models use HP Bright Office Inks, offer up to 2400 × 1200 optimised dpi resolution, and support roll and sheet media with optional accessories such as a stand and automatic sheet feeder. Each printer is constructed with over 40% recycled plastic and 5% recycled metal, and both feature energy-saving technologies including a power scheduler and reduced ink consumption during maintenance.
The key differences lie in print performance and colour capability. The T250 prints an A1 page in 30 seconds, while the T230 takes 35 seconds, making the T250 more suitable for users with higher volume output needs. In addition, the T250 delivers up to 34% more colour gamut than the T230, providing richer and more vibrant output—particularly beneficial for design-focused applications. The T250 offers enhanced speed and colour output compared the the T230 model, making it better suited for demanding or graphics-intensive environments.
The printer includes HP Click software, enabling fast and intuitive job submission from PDFs and other file types with a single click. Users can print and manage jobs remotely via the HP app. Connectivity includes Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB 2.0, with optional accessories such as a stand and automatic sheet feeder for increased versatility.
This model is built with sustainability in mind. The T250 contains over 40% recycled plastic and 5% recycled metal. It is ENERGY STAR® certified and features fully fibre-based packaging with a 73% reduction in plastic. It also uses up to 96% less ink during routine maintenance and reduces energy consumption by up to 65% using its auto on/off scheduler.
HP Wolf Essential Security is included to provide core-level protection from unauthorised access and cyber threats. This ensures that design files and network activity remain protected whether operating in a shared office or remote working environment.

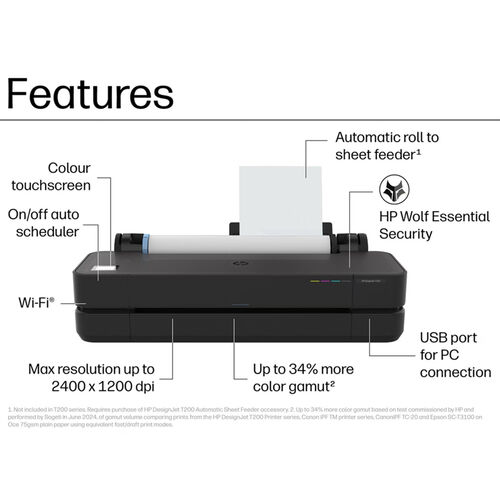

MAIN FEATURES:
1. HP CLICK-PRINT SOLUTIONS:
Submit print jobs easily with the HP Click driver and desktop application for one-click printing from PDFs and other formats.
2. ENVIRONMENTALLY RESPONSIBLE DESIGN:
Constructed with over 40% recycled plastic and 5% recycled metal in a fully fibre-based package design.
3. ENERGY EFFICIENT OPERATION:
Reduces energy usage by up to 65% with a built-in on/off scheduler and uses 96% less ink during maintenance.
4. HP WOLF ESSENTIAL SECURITY:
Protects the printer and data against everyday security threats with built-in HP Wolf Essential Security.
5. A4/A TO A1/D FEEDER ACCESSORY:
Optional accessory enables automatic feeding of different paper sizes without manual media switching.
6. HP BRIGHT OFFICE INKS:
Produces precise lines and vivid colours with a colour gamut up to 34% wider than the T230.

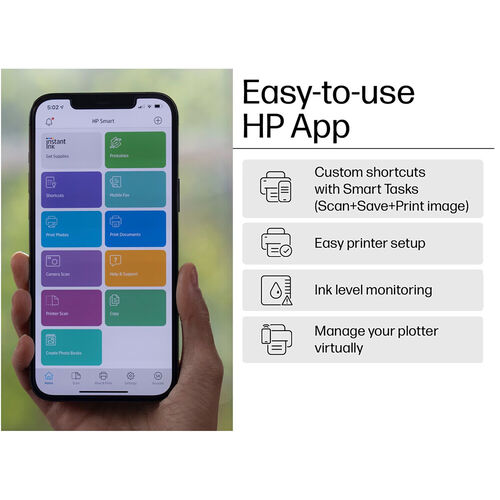

7. HP APP FUNCTIONALITY:
Print and manage jobs remotely using the HP Smart app from any compatible device.
SUMMARY:
The HP DesignJet T250 24” Printer offers faster, more vibrant A1 printing in a compact and eco-conscious form, with built-in security and smart connectivity. Ideal for technical professionals and design teams seeking performance and precision.
COMPARISON WITH T230:
FEATURES HP DesignJet T230 (5HB07D) HP DesignJet T250 (5HB06D) Max Print Width 24 inches / A1 24 inches / A1 Print Speed (A1/D) 35 seconds 30 seconds Maximum Resolution Up to 2400 × 1200 optimised dpi Up to 2400 × 1200 optimised dpi Colour Gamut Standard Up to 34% wider colour gamut Ink Type HP Bright Office Inks HP Bright Office Inks Media Handling Sheet feed, roll feed, auto horizontal cutter Same HP Click Software Yes Yes Yes (Wi-Fi, Wi-Fi Direct, HP Smart App) Same Sustainability 40% recycled plastic, 5% recycled metal Same Energy Efficiency Up to 65% lower energy use (auto scheduler) Same Ink Efficiency Up to 96% less ink used during maintenance Same Security Features HP Wolf Essential Security Same Compatible Accessories Optional sheet feeder and stand Same Best Use Case Standard CAD and technical drawings Faster output, improved colour for design -
Tech specs
Memory: 512 MB
What's in the box: HP DesignJet T250 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Security features: HP Wolf Essential Security: Secure boot with HW root of trust, Firmware Code Signature Validation, Automatic FW Updates, HTTPS Redirect enabled by default, SNMPv1/2 read-only by default, SNMPv3 disabled by default, Write-protected memory, HP Cartridge Security, Unique password, Disable USB ports, TLS 1.2, 802.1x, IPv4 & IPv6 Compatibility, CA/JD Compatibility
Weight: 21.5 kg
Package weight: 27kg
Dimensions (W x D x H): 1013 x 440 x 285mm
Package dimensions (W x D x H): 1155 x 575 x 405mm Power Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS Manufacturer Warranty: Two-year limited hardware warranty
Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges Ink types: Dye-based (C, M, Y), pigment-based (K)
Print Cartridge/Bottle, Colour(s): Cyan, magenta, yellow, black Ink drop: 5.5pl (C, M, Y), 12pl (K)
Print cartridge/bottle volume: 80ml (K), 38ml (K), 29ml (C, M, Y) per cartridge
Print head nozzles: 1376 Print heads: 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour): 20ml of ink yields 101 A1 pages, taking into account maintenance routines
Functions: Print Print quality colour (best): Up to 2400 x 1200 optimised dpi Internal
Storage: None Print speed: 30 sec/page on A1, 76 A1 prints per hour
Print technology: HP Thermal Inkjet Print languages: JPEG, URF
Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11
Model size: 610mm Remote print enabled: Yes
Non-printable area (cut-sheet): 5 x 5 x 5 x 17mm (manual feed), 5 x 5 x 5 x 5mm (input tray)
Non-printable area (roll media): 5 x 5 x 5 x 5mm
Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Line accuracy: ±0.1%
Theoretical minimum line width: 0.02mm
Print multi-size files in one click: Yes
Maximum optical density (black): 8 L* min/2.10 D
Media sizes supported: A4, A3, A2, A1
Media sizes, custom: 210 x 279 to 610 x 1897mm
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280g/m²
Media width, maximum: 610mm
Supported Primary Applications: Line drawings, Presentations, Renderings
Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610 mm x 45.7 m C6019B HP Coated Paper (FSC® certified) (recyclable) 610 mm x 45.7 m C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610 mm x 30.5 m
Media sizes standard (metric rolls): 279 to 610mm
Finished output handling: Sheet feed, roll feed, automatic horizontal cutter
Roll external diameter: 100mm
Roll maximum input: 1
Roll maximum weight: 4.1kg
Media thickness: Up to 11.8mil
Media thickness maximum (metric): Up to 0.3mm
Product disclaimer: This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.
Technical features: Wi-Fi, Colour Touchscreen, Start-up Ink Cartridges, USB port for PC connection, Max resolution 2400 x 2400 dpi, Roll cover accessory, Automatic sheet feeder accessory, Output stand bin accessory
-
Model Comparison
-
Sustainability
-
Accessories & Ink Supplies
ACCESSORIES:
HP Designet T200/T600 24” Printer Stand (3C753A)
HP DesignJet T200/T600 Automatic Sheet Feeder (8AJ60A)
HP DesignJet T200/T600 24“ Roll Cover (9GF94A)
HP DesignJet 24” Spindle (B3Q36A)

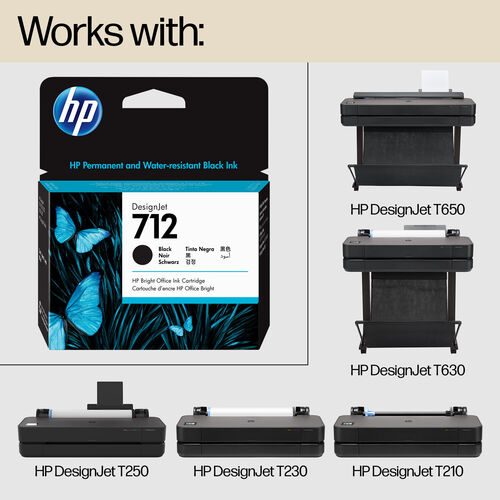

INK SUPPLIES:
HP 713 | DesignJet Printhead Replacement Kit | 3ED58A
HP 712 | 29ml Cyan DesignJet Ink Cartridge | 3ED67A
HP 712 | 29ml Magenta DesignJet Ink Cartridge | 3ED68A
HP 712 | 29ml Yellow DesignJet Ink Cartridge | 3ED69A
HP 712 | 38ml Black DesignJet Ink Cartridge | 3ED70A
HP 712 | 80ml Black DesignJet Ink Cartridge | 3ED71A
HP 712 | 3-pack 29ml Cyan DesignJet Ink Cartridge | 3ED77A
HP 712 | 3-pack 29ml Magenta DesignJet Ink Cartridge | 3ED78A
HP 712 | 3-pack 29ml Yellow DesignJet Ink Cartridge | 3ED79A
-
