Description

Delivers fast 36" A1 printing with 1 GB memory, enhanced colour accuracy, wide media handling, Wi-Fi connectivity and ENERGY STAR® certified sustainable design with over 40% recycled plastic and fibre-based packaging.

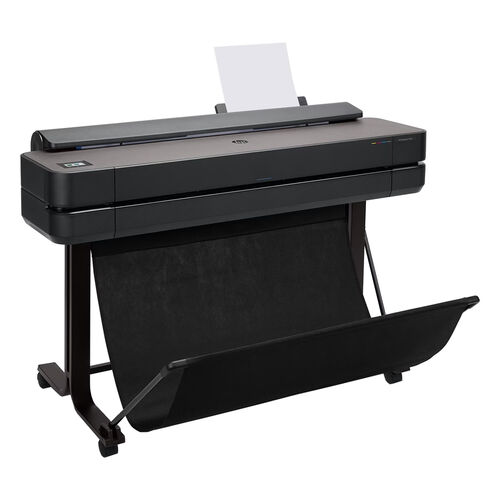

HP DesignJet T630 36” Printer (2025 Edition) (5HB11D): Professional large-format inkjet printer designed for technical users who require speed, precision and flexibility. With a maximum print width of 36 inches, it supports output sizes up to A0 and E-size, making it ideal for CAD drawings, GIS maps and architectural plans. It delivers A1 prints in as little as 30 seconds, enabling high productivity in busy workgroups or remote setups.

Equipped with 1 GB of onboard memory, the T630 36” is capable of handling complex print files smoothly without interruptions or lags. The printer produces output at up to 2400 × 1200 optimised dpi using HP Bright Office Inks, which improve line accuracy and expand colour gamut by up to 34%. This makes it suitable not only for line drawings but also for colour-rich presentations and visuals that require enhanced clarity and vibrancy.

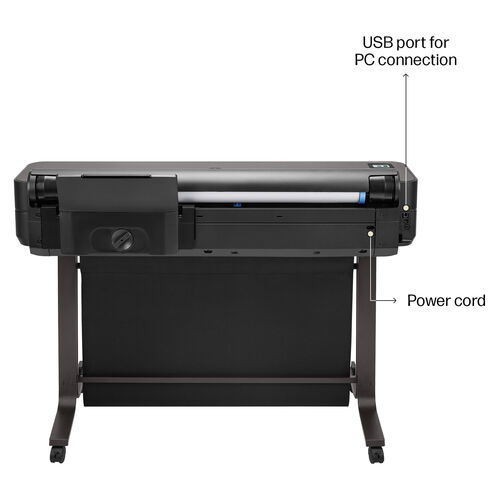

Includes professional-grade media handling options as standard. It supports both roll and sheet media, and comes with an integrated automatic sheet feeder, a media bin and a horizontal cutter. Users can switch easily between media types and sizes without manual intervention. The printer connects via Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB 2.0, and print jobs can be managed remotely using the HP app. HP Click software simplifies multi-page PDF print jobs with single-click submission.

Compared with the T630 24” (5HB09D), the 36-inch model offers a wider print width for users who regularly produce A0 drawings, engineering layouts or large-format posters. Both models feature the same memory, speed and media handling options, but the 36-inch version enables larger output sizes without compromising precision or quality. For teams working on larger-scale documents or needing greater layout flexibility, the 36” model provides a more capable solution.

This model supports intuitive job submission via HP Click software, allowing users to send multi-page PDF files and other formats to print with a single click. The HP Smart App also enables remote job monitoring and management, making it easier to work from anywhere. Connectivity options include Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB 2.0, ensuring seamless integration into office setups.

Unlike the lower-tier T200 series, the T630 includes a stand, media bin and automatic sheet feeder as standard. These features improve unattended printing and reduce manual handling, making it ideal for medium-to-high output environments. Its automatic horizontal cutter and roll-to-sheet flexibility also support mixed media workflows with minimal interruption.

HP Wolf Essential Security is built in to help protect against unauthorised access and ensure the confidentiality of design files. The T630 is ENERGY STAR® certified and EPEAT-registered, reflecting HP’s commitment to more sustainable printing. The printer includes an automatic power scheduler and has been designed to reduce energy usage during standby periods. Its packaging is also more environmentally responsible, using predominantly fibre-based materials.

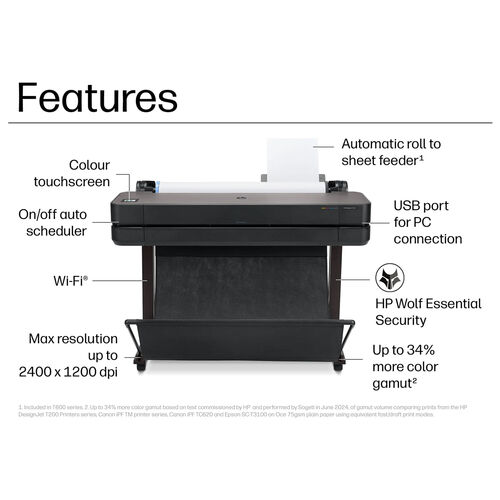

MAIN FEATURES:

1. HP CLICK-PRINT SOLUTIONS:

Submit print jobs easily with the HP Click driver and desktop application for one-click printing from PDFs and other formats.

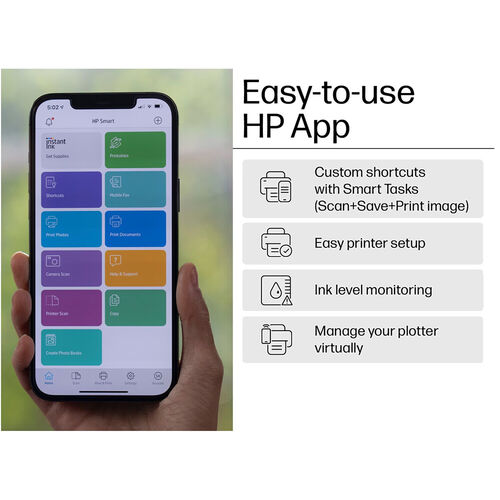

2. HP APP:

Send print jobs and monitor your plotter from virtually anywhere using the HP app, available on mobile devices.

3. ENERGY SAVINGS:

Reduce energy use by up to 65% with the automatic on/off scheduler and efficient ink maintenance routines built into the printer.

4. RESPONSIBLY DESIGNED:

Built with at least 40% recycled plastic and the first HP large-format printer to include recycled metal components.

5. HP WOLF ESSENTIAL SECURITY:

Provides essential protection with built-in HP Wolf Essential Security to help safeguard your printer and data from cyber threats.

6. A4/A TO A0/E FEEDER ACCESSORY:

An optional accessory enables seamless printing of mixed-size documents from A4/A to A0/E without the need to manually change media.

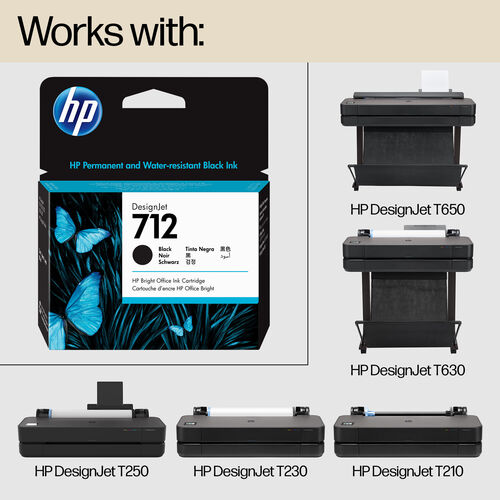

7. HP BRIGHT OFFICE INKS:

Achieve superior print quality — HP Bright Office inks improve line accuracy and expand colour gamut by up to 34%.

MODEL COMPARISON:

SUMMARY:

The HP DesignJet T630 24” Printer (2025 Edition) offers fast, precise large-format printing with enhanced colour accuracy and versatile media handling. It features built-in Wi-Fi, Gigabit Ethernet, USB connectivity and supports remote job management via HP Smart App. Unlike entry-level models, the T630 includes a media bin, automatic sheet feeder and stand as standard. ENERGY STAR® certified and EPEAT-registered, it combines productivity with sustainable design and robust security through HP Wolf Essential Security.
