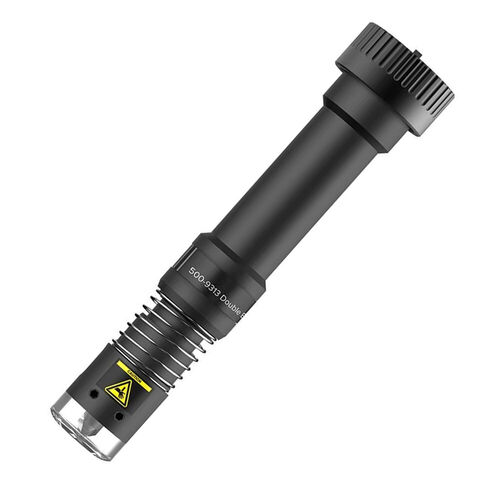

Summa Double Edge Cutout Tool for F Series Flatbed Cutters (500-9313)

Zoom In

Summa Double Edge Cutout Tool for F Series Flatbed Cutters:
£419.99 inc VAT, £349.99 ex VAT

Summa Double Edge Cutout Tool for F Series Flatbed Cutters

£419.99 inc VAT, £349.99 ex VAT

Not the right product for you? Look at related products

Description
F-series Modules & Tools
Tech specs
Suitable Materials

Description

Summa Double Edge Cutout Tool for F Series Flatbed Cutters (500-9313):

A high-performance tool designed for precision cutting of a variety of materials. This tool features double-edged blades allowing for faster and more efficient cutting particularly in applications where high-quality, clean cutouts are required. The robust design ensures that the tool delivers consistent, sharp cuts throughout its service life, making it an excellent choice for professional use in demanding environments.

Optimised for use with Summa F Series Flatbed Cutters including the F1612, F1832, F3220 and F3232 models, this tool offers seamless integration into existing workflows. Whether cutting through thick or thin materials, the double-edge blade system ensures an efficient and accurate cutting process. This tool is particularly effective for creating intricate cutouts, precise shapes and curves in materials such as vinyl, cardboard and plastics providing exceptional results for signage, packaging and display applications.

The Summa Double Edge Cutout Tool is designed to enhance productivity and reduce cutting time without sacrificing quality. By utilising both edges of the blade simultaneously, the tool reduces the number of passes required, allowing for faster processing and increased throughput. This makes it ideal for high-volume production environments where time efficiency is crucial. The tool’s ergonomic design and easy installation process make it simple to use, ensuring minimal downtime and maximum productivity.

Whether you're working with single sheets or large rolls, the Summa Double Edge Cutout Tool ensures that each cut is sharp, clean and precise. Its versatility, durability and integration with Summa F Series Flatbed Cutters make it a must-have tool for any business looking to streamline their cutting processes and improve output quality.

KEY FEATURES:
- DOUBLE-EDGE CUTTING: Utilises both edges of the blade for faster cutting, reducing the number of passes required.
- SEAMLESS COMPATIBILITY: Designed for use with Summa F Series Flatbed Cutters including F1612, F1832, F3220 and F3232 models.
- PRECISION CUTTING: Delivers sharp, clean cuts on a variety of materials ensuring professional results.
- DURABLE DESIGN: Built for long-lasting performance even in high-volume production environments.
- ENHANCED PRODUCTIVITY: Reduces cutting time, improving workflow efficiency and increasing throughput.
- VERSATILE MATERIAL HANDLING: Suitable for cutting vinyl, cardboard, plastics and other flexible materials used in signage, packaging and display applications.
F-series Modules & Tools

The F Series models feature a multi-functional cutting head capable of holding up to three cutting modules simultaneously. This allows the system to efficiently handle cutting jobs that require multiple techniques or to switch quickly between tasks involving different materials. The integrated camera system and LED pointer in the central unit ensure precise and rapid mark recognition for flawless operation.

Each module can accommodate a variety of tools, blades and bits, allowing you to select the ideal tool for cutting your specific material and achieving the highest quality results. Every tool features a barcode ID for automatic recognition and parameter pre-sets. As your business expands, you can easily extend your tool range to meet new production demands.

AUTOMATIC DEPTH CONTROL:

The Automated Depth Control (ADC) simplifies tool, knife or bit changes significantly. The ADC measures the tip of the knife or bit accurately and sets the down position of the tool to the table’s level, thus guaranteeing a flawless cut.

Several creasing wheels, designed in different depths and radius sizes, are available for creasing and scoring paper, cartons, polypropylene and PVC material.

FEATURES:
- Clean creases without tearing
- Directional pressure adjustments
IDEAL FOR CREASING:
- Corrugated B-C-A-EE-BC flute (3 - 6mm)
- Corrugated C Flute (4mm)
- Corrugated E Flute (1.5mm)
- Paper < 200gr • Cardboard 300 - 500g/m²
- Polypropelene sheets <= 1.2mm
- Corrugated B-C-A-EE- BC flute (3-6mm)
The Double Edge Cutout Tool ensures minimal wear when cutting through rigid material up to 5mm thick. Here also, a spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:
- Precise cutting of details
- Cuts at both knife sides
- Minimal knife wear
- Ideal to cut rigid material
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Cardboard 300-500g/m²
- Adhesive vinyl
- Adhesive PVC
- PVC Banner
- Reflectivesheeting
- Expanded PVC board <= 1.2mm
- Polypropelene <= 1.2mm
- Polycarbonate <= 0.6mm
- Magnetic material
Ideal for cutting soft and medium density materials such as corrugated board and foam up to 18mm thick. The Electronic Oscillating Tool is driven by an electric motor, producing up to 12,000 rpm and moves a knife up and down over a stroke of 1mm.

FEATURES:
- Powerful cutting tool
- High processing speeds
- Low maintenance
IDEAL FOR CUTTING:
- Corrugated B-C-E Flute (1.5-4 mm)
- Foamcore with paper liner <= 10mm
- Foamcore with pa- per liner > 5mm
- Honeycomb board < 10mm
- Gasket
The Heavy-Duty Cutout Tool is suitable for cutting through thicker materials up to 15mm thick.

FEATURES:
- Ideal to cut very thick material
IDEAL FOR CUTTING:
- Cardboard 300-500g/m²
- Adhesive vinyl
- Adhesive PVC
- PVC Banner
- Corrugated PP board <= 5mm
- Expanded PVC board <= 1.2mm
- Polypropelene <= 1.0mm
- Polycarbonate <= 0.6mm
- Foamcore with paper liner <= 5mm
- Varnish blankets
With mechanically-controlled knife pressure, this tool is specifically designed for kiss-cutting material down to its liner up to 1.2mm thick. This tool also includes an adjustable nose piece for precise depth control.

FEATURES:
- Precise depth control
- Clean cuts for easy weeding
- Cuts a wide variety of vinyl and film
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Adhesive vinyl
- Sandblast material
- Window film
- Magnetic material
- Adhesive PVC Banner material
The new Summa perforating tool for the F Series is used to make perforations in a very efficient and fast way. By using this tool, the perforated materials will be a lot easier to bend or fold. Then, the folds will have sharper 90° edges resulting in a nicer finish. This will save considerable time in the assembling of, for instance, cardboard or polypropylene boxes.

FEATURES:
- Up to 25 times faster cutting of perforation lines (versus EOT tool)
- Alternative for creasing. Folding and bending lines into cardboard
- High-quality perforated cuts
- Several knives available
IDEAL FOR CUTTING:
- Solid cardboard
- Corrugated board
- Polypropylene film
The standard Pneumatic Oscillating Tool, powered by compressed air, moves its knife up and down over a stroke of 8mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:
- High-performance cutting tool
- High processing speeds
- Availability of longer knife
IDEAL FOR CUTTING:
- Triple walled cardboard
- Double walled cardboard
- Packaging Foam
- Honeycomb board >= 10mm
- Foamcore with paper liner> 5mm
- Re-board®
- Foamboard with plastic
- Rubber
The Pneumatic Oscillating Tool-L (POT-L) is an addition to the standard POT and is used with a Longer type of knife. The POT-L is able to process thick, soft foams with a maximum thickness up to 42mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:
- High-performance cutting tool
- High processing speeds
- Availability of longer knife
IDEAL FOR CUTTING:
- Triple walled cardboard
- Double walled cardboard
- Packaging Foam
- Honeycomb board >= 10mm
- Foamcore with paper liner> 5mm
- Re-board®
- Foamboard with plastic
- Rubber
The Single Edge Cutout Tool is designed for detailed cutting through materials up to 6mm thick. A spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:
- Precise cutting of details
- Cuts material up to 6mm thick
- Fixed depth setting
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Cardboard 300-500g/m²
- Adhesive vinyl
- Foamboard <= 2mm
- Polypropelene <= 1.2mm
- Polycarbonate <= 0.6mm
- Adhesive PVC
- Magnetic material
The V-Cut Tools are available in 5 angles and are designed to cut a V-shaped groove in rigid sandwich and foam composite boards up to 27mm thick, depending on the material’s density.

FEATURES:
- Precise angle adjustment
- Very fast blade changes
IDEAL FOR CUTTING:
- Honeycomb board
- Foamcore with paper liner
Tech specs
- BLADE TYPE: Double Edge
- COMPATIBILITY: Summa F Series Flatbed Cutters (F1612, F1832, F3220 & F3232)
- PART NUMBER: 500-9313
Suitable Materials
- VINYL: Provides clean, precise cuts without material tearing, ideal for signage and decals.
- CARDBOARD: Cuts through cardboard with accuracy, making it perfect for packaging applications.
- PLASTICS: Effectively handles thin to medium-weight plastics, ensuring sharp and smooth edges.
- FLEXIBLE SUBSTRATES: Perfect for materials that require intricate cutouts such as films and textiles without distortion.
The double-edge blade system ensures faster, cleaner cuts reducing material waste and improving the overall quality of the cut.
