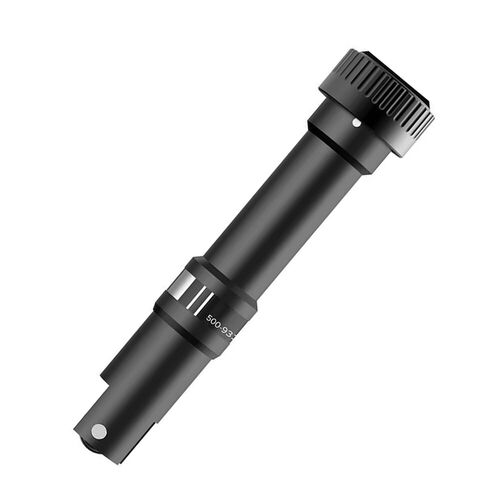

Summa Creasing Tool D15 2pt for F Series Flatbed Cutters (500-9328)

F-series Modules & Tools

Each module can accommodate a variety of tools, blades and bits, allowing you to select the ideal tool for cutting your specific material and achieving the highest quality results. Every tool features a barcode ID for automatic recognition and parameter pre-sets. As your business expands, you can easily extend your tool range to meet new production demands.

AUTOMATIC DEPTH CONTROL:

The Automated Depth Control (ADC) simplifies tool, knife or bit changes significantly. The ADC measures the tip of the knife or bit accurately and sets the down position of the tool to the table’s level, thus guaranteeing a flawless cut.

Several creasing wheels, designed in different depths and radius sizes, are available for creasing and scoring paper, cartons, polypropylene and PVC material.

FEATURES:

• Clean creases without tearing
• Directional pressure adjustments

IDEAL FOR CREASING:

• Corrugated B-C-A-EE-BC flute (3 - 6mm)
• Corrugated C Flute (4mm)
• Corrugated E Flute (1.5mm)
• Paper < 200gr • Cardboard 300 - 500g/m²
• Polypropelene sheets <= 1.2mm
• Corrugated B-C-A-EE- BC flute (3-6mm)

The Double Edge Cutout Tool ensures minimal wear when cutting through rigid material up to 5mm thick. Here also, a spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:

• Precise cutting of details
• Cuts at both knife sides
• Minimal knife wear
• Ideal to cut rigid material

IDEAL FOR CUTTING:

• Paper < 200g/m²
• Cardboard 300-500g/m²
• Adhesive vinyl
• Adhesive PVC
• PVC Banner
• Reflectivesheeting
• Expanded PVC board <= 1.2mm
• Polypropelene <= 1.2mm
• Polycarbonate <= 0.6mm
• Magnetic material

Ideal for cutting soft and medium density materials such as corrugated board and foam up to 18mm thick. The Electronic Oscillating Tool is driven by an electric motor, producing up to 12,000 rpm and moves a knife up and down over a stroke of 1mm.

FEATURES:

• Powerful cutting tool
• High processing speeds
• Low maintenance

IDEAL FOR CUTTING:

• Corrugated B-C-E Flute (1.5-4 mm)
• Foamcore with paper liner <= 10mm
• Foamcore with pa- per liner > 5mm
• Honeycomb board < 10mm
• Gasket

The Heavy-Duty Cutout Tool is suitable for cutting through thicker materials up to 15mm thick.

FEATURES:

• Ideal to cut very thick material

IDEAL FOR CUTTING:

• Cardboard 300-500g/m²
• Adhesive vinyl
• Adhesive PVC
• PVC Banner
• Corrugated PP board <= 5mm
• Expanded PVC board <= 1.2mm
• Polypropelene <= 1.0mm
• Polycarbonate <= 0.6mm
• Foamcore with paper liner <= 5mm
• Varnish blankets

With mechanically-controlled knife pressure, this tool is specifically designed for kiss-cutting material down to its liner up to 1.2mm thick. This tool also includes an adjustable nose piece for precise depth control.

FEATURES:

• Precise depth control
• Clean cuts for easy weeding
• Cuts a wide variety of vinyl and film

IDEAL FOR CUTTING:

• Paper < 200g/m²
• Adhesive vinyl
• Sandblast material
• Window film
• Magnetic material
• Adhesive PVC Banner material

The new Summa perforating tool for the F Series is used to make perforations in a very efficient and fast way. By using this tool, the perforated materials will be a lot easier to bend or fold. Then, the folds will have sharper 90° edges resulting in a nicer finish. This will save considerable time in the assembling of, for instance, cardboard or polypropylene boxes.

FEATURES:

• Up to 25 times faster cutting of perforation lines (versus EOT tool)
• Alternative for creasing. Folding and bending lines into cardboard
• High-quality perforated cuts
• Several knives available

IDEAL FOR CUTTING:

• Solid cardboard
• Corrugated board
• Polypropylene film

The standard Pneumatic Oscillating Tool, powered by compressed air, moves its knife up and down over a stroke of 8mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:

• High-performance cutting tool
• High processing speeds
• Availability of longer knife

IDEAL FOR CUTTING:

• Triple walled cardboard
• Double walled cardboard
• Packaging Foam
• Honeycomb board >= 10mm
• Foamcore with paper liner> 5mm
• Re-board®
• Foamboard with plastic
• Rubber

The Pneumatic Oscillating Tool-L (POT-L) is an addition to the standard POT and is used with a Longer type of knife. The POT-L is able to process thick, soft foams with a maximum thickness up to 42mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:

• High-performance cutting tool
• High processing speeds
• Availability of longer knife

IDEAL FOR CUTTING:

• Triple walled cardboard
• Double walled cardboard
• Packaging Foam
• Honeycomb board >= 10mm
• Foamcore with paper liner> 5mm
• Re-board®
• Foamboard with plastic
• Rubber

The Single Edge Cutout Tool is designed for detailed cutting through materials up to 6mm thick. A spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:

• Precise cutting of details
• Cuts material up to 6mm thick
• Fixed depth setting

IDEAL FOR CUTTING:

• Paper < 200g/m²
• Cardboard 300-500g/m²
• Adhesive vinyl
• Foamboard <= 2mm
• Polypropelene <= 1.2mm
• Polycarbonate <= 0.6mm
• Adhesive PVC
• Magnetic material

The V-Cut Tools are available in 5 angles and are designed to cut a V-shaped groove in rigid sandwich and foam composite boards up to 27mm thick, depending on the material’s density.

FEATURES:

• Precise angle adjustment
• Very fast blade changes

IDEAL FOR CUTTING:

• Honeycomb board
• Foamcore with paper liner

Compatibility

Summa F1612, F1330, F1832, F3220 & F2630 Flatbed Cutters

Similar products

Summa | Creasing Tool D15 1pt for F Series Flatbed Cutters | 500-9329

Summa | Creasing Tool D15 2pt for F Series Flatbed Cutters | 500-9328

The primary difference between the Summa Creasing Tool D15 1pt (500-9329) and the D15 2pt (500-9328) lies in the width of their creasing wheels:

• D15 1pt (500-9329): Features a creasing wheel with a width of 0.35mm.
• D15 2pt (500-9328): Features a creasing wheel with a width of 0.7mm.

This difference in width affects the creasing performance on various materials. The 1pt tool, with its narrower wheel, is suitable for lighter materials, while the 2pt tool, with a wider wheel, is better suited for heavier or thicker materials. Both tools are compatible with Summa F Series Flatbed Cutters.
