Summa HF Routing System for F1330 Series Flatbed Cutter (vacuum required) (500-9371)

Zoom In

Summa HF Routing System for F1330 Series Flatbed Cutter (vacuum required):
£24001.19 inc VAT, £20000.99 ex VAT

Summa HF Routing System for F1330 Series Flatbed Cutter (vacuum required)

£24001.19 inc VAT, £20000.99 ex VAT

Description
F-series Modules & Tools
Suitable Materials
Other related models
Video

Description

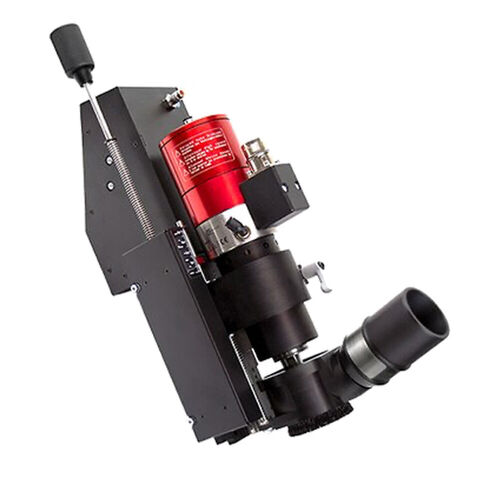

Summa HF Routing System for F1330 Series Flatbed Cutter (vacuum required) (500-9371):

High-frequency routing solution designed for use with the F1330 Series Flatbed Cutter. This system offers exceptional power and precision for processing rigid materials, making it an essential tool for industries requiring advanced milling capabilities. Featuring a high-frequency spindle, it delivers increased rotational speeds, ensuring clean, sharp edges and superior cutting quality across various materials.

With its robust construction and integrated vacuum system requirement, the HF Routing System enhances stability during cutting operations by securing materials firmly in place. This reduces movement and improves accuracy, making it ideal for intricate designs and detailed finishing work. However, it is important to note that while a vacuum system is required for optimal operation, it is not supplied with this product and must be purchased separately. Ensuring proper vacuum setup is essential for achieving the best results when working with rigid materials.

The Summa HF Routing System for F1330 is engineered for durability, ensuring reliable performance in high-demand environments. Its compatibility with Summa’s advanced tooling range further extends its versatility, enabling users to tackle a wide variety of applications, from signage and displays to industrial prototyping and manufacturing.

KEY FEATURES:
- HIGH-FREQUENCY ROUTING POWER: The system features a high-speed spindle for efficient cutting of rigid materials.
- SEAMLESS INTEGRATION: Designed specifically for the Summa F1330 Series Flatbed Cutter for effortless operation.
- VACUUM SYSTEM REQUIRED: Ensures effective debris extraction, maintaining a clean work surface and optimal performance.
- VERSATILE MATERIAL COMPATIBILITY: Suitable for cutting acrylic, foam board, MDF, aluminium composite panels & more.
- DURABLE & RELIABLE: Built for high-volume production environments, reducing tool wear and increasing longevity.
- ENHANCED WORKFLOW EFFICIENCY: Reduces manual handling with automated cutting capabilities, improving productivity.
F-series Modules & Tools

The F Series models feature a multi-functional cutting head capable of holding up to three cutting modules simultaneously. This allows the system to efficiently handle cutting jobs that require multiple techniques or to switch quickly between tasks involving different materials. The integrated camera system and LED pointer in the central unit ensure precise and rapid mark recognition for flawless operation.

Each module can accommodate a variety of tools, blades and bits, allowing you to select the ideal tool for cutting your specific material and achieving the highest quality results. Every tool features a barcode ID for automatic recognition and parameter pre-sets. As your business expands, you can easily extend your tool range to meet new production demands.

AUTOMATIC DEPTH CONTROL:

The Automated Depth Control (ADC) simplifies tool, knife or bit changes significantly. The ADC measures the tip of the knife or bit accurately and sets the down position of the tool to the table’s level, thus guaranteeing a flawless cut.

Several creasing wheels, designed in different depths and radius sizes, are available for creasing and scoring paper, cartons, polypropylene and PVC material.

FEATURES:
- Clean creases without tearing
- Directional pressure adjustments
IDEAL FOR CREASING:
- Corrugated B-C-A-EE-BC flute (3 - 6mm)
- Corrugated C Flute (4mm)
- Corrugated E Flute (1.5mm)
- Paper < 200gr • Cardboard 300 - 500g/m²
- Polypropelene sheets <= 1.2mm
- Corrugated B-C-A-EE- BC flute (3-6mm)
The Double Edge Cutout Tool ensures minimal wear when cutting through rigid material up to 5mm thick. Here also, a spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:
- Precise cutting of details
- Cuts at both knife sides
- Minimal knife wear
- Ideal to cut rigid material
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Cardboard 300-500g/m²
- Adhesive vinyl
- Adhesive PVC
- PVC Banner
- Reflectivesheeting
- Expanded PVC board <= 1.2mm
- Polypropelene <= 1.2mm
- Polycarbonate <= 0.6mm
- Magnetic material
Ideal for cutting soft and medium density materials such as corrugated board and foam up to 18mm thick. The Electronic Oscillating Tool is driven by an electric motor, producing up to 12,000 rpm and moves a knife up and down over a stroke of 1mm.

FEATURES:
- Powerful cutting tool
- High processing speeds
- Low maintenance
IDEAL FOR CUTTING:
- Corrugated B-C-E Flute (1.5-4 mm)
- Foamcore with paper liner <= 10mm
- Foamcore with pa- per liner > 5mm
- Honeycomb board < 10mm
- Gasket
The Heavy-Duty Cutout Tool is suitable for cutting through thicker materials up to 15mm thick.

FEATURES:
- Ideal to cut very thick material
IDEAL FOR CUTTING:
- Cardboard 300-500g/m²
- Adhesive vinyl
- Adhesive PVC
- PVC Banner
- Corrugated PP board <= 5mm
- Expanded PVC board <= 1.2mm
- Polypropelene <= 1.0mm
- Polycarbonate <= 0.6mm
- Foamcore with paper liner <= 5mm
- Varnish blankets
With mechanically-controlled knife pressure, this tool is specifically designed for kiss-cutting material down to its liner up to 1.2mm thick. This tool also includes an adjustable nose piece for precise depth control.

FEATURES:
- Precise depth control
- Clean cuts for easy weeding
- Cuts a wide variety of vinyl and film
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Adhesive vinyl
- Sandblast material
- Window film
- Magnetic material
- Adhesive PVC Banner material
The new Summa perforating tool for the F Series is used to make perforations in a very efficient and fast way. By using this tool, the perforated materials will be a lot easier to bend or fold. Then, the folds will have sharper 90° edges resulting in a nicer finish. This will save considerable time in the assembling of, for instance, cardboard or polypropylene boxes.

FEATURES:
- Up to 25 times faster cutting of perforation lines (versus EOT tool)
- Alternative for creasing. Folding and bending lines into cardboard
- High-quality perforated cuts
- Several knives available
IDEAL FOR CUTTING:
- Solid cardboard
- Corrugated board
- Polypropylene film
The standard Pneumatic Oscillating Tool, powered by compressed air, moves its knife up and down over a stroke of 8mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:
- High-performance cutting tool
- High processing speeds
- Availability of longer knife
IDEAL FOR CUTTING:
- Triple walled cardboard
- Double walled cardboard
- Packaging Foam
- Honeycomb board >= 10mm
- Foamcore with paper liner> 5mm
- Re-board®
- Foamboard with plastic
- Rubber
The Pneumatic Oscillating Tool-L (POT-L) is an addition to the standard POT and is used with a Longer type of knife. The POT-L is able to process thick, soft foams with a maximum thickness up to 42mm. The robust construction of the tool makes it suitable to cut thick material, such as honeycomb board, corrugated board and foam board.

FEATURES:
- High-performance cutting tool
- High processing speeds
- Availability of longer knife
IDEAL FOR CUTTING:
- Triple walled cardboard
- Double walled cardboard
- Packaging Foam
- Honeycomb board >= 10mm
- Foamcore with paper liner> 5mm
- Re-board®
- Foamboard with plastic
- Rubber
The Single Edge Cutout Tool is designed for detailed cutting through materials up to 6mm thick. A spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

FEATURES:
- Precise cutting of details
- Cuts material up to 6mm thick
- Fixed depth setting
IDEAL FOR CUTTING:
- Paper < 200g/m²
- Cardboard 300-500g/m²
- Adhesive vinyl
- Foamboard <= 2mm
- Polypropelene <= 1.2mm
- Polycarbonate <= 0.6mm
- Adhesive PVC
- Magnetic material
The V-Cut Tools are available in 5 angles and are designed to cut a V-shaped groove in rigid sandwich and foam composite boards up to 27mm thick, depending on the material’s density.

FEATURES:
- Precise angle adjustment
- Very fast blade changes
IDEAL FOR CUTTING:
- Honeycomb board
- Foamcore with paper liner
Suitable Materials
- ACRYLIC: Provides clean and polished edges with precise cuts.
- ALUMINIUM COMPOSITE PANELS (ACP): Ensures accurate and smooth routing of durable panels.
- MDF: Ideal for detailed cuts in medium-density fibreboard.
- FOAM BOARD: Lightweight yet strong material for signage and displays.
- PLASTICS: Supports various plastic substrates with precision cutting.
Other related models

Summa | HF Routing System for F1330 Series Flatbed Cutter | 500-9371

Summa | HF Routing System for F1612 Series Flatbed Cutter | 500-9372

Summa | HF Routing System for F1832 Series Flatbed Cutter | 500-9373

Summa | HF Routing System for F3220 Series Flatbed Cutter | 500-9374

Summa | HF Routing System for F3232 Series Flatbed Cutter | 500-9375
