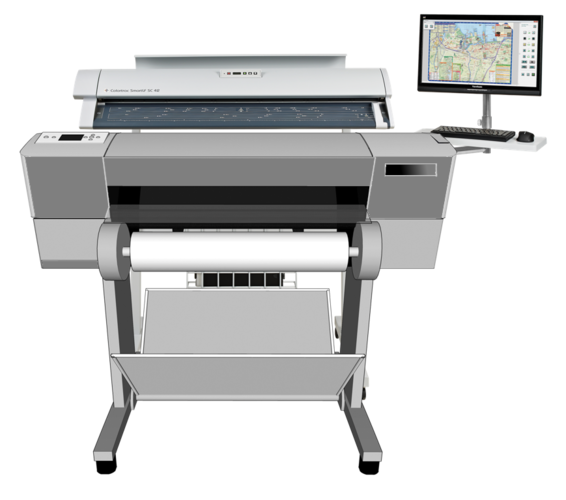

Colortrac SmartLF SC 25c Colour MFP System
Colortrac SmartLF SC 25c Colour MFP System
-
Please contact us on 01905 454 598 for a quote
-
Description
If you have limited space available and need a flexible wide format document copier capable of taking up to D-size or A1 size technical drawings then the SmartLF SC 25 mfp scanner combined with SmartWorks EZ Touch Plus scan and copy software is the ultra-compact 25 inch Professional MFP Solution product you need.
Where floor space is at a premium, this compact professional MFP solution is capable of copying and scanning large CAD technical drawings or color office documents of the type used in architecture, engineering & manufacturing, construction, utilities, energy companies, mapping and GIS organisations. Every Professional MFP Solution comes complete with an adjustable high stand that allows the scanner to be positioned above most large format printers.
The SmartWorks EZ Touch Plus software provides the user with simple but effective tools to ensure premium quality scanned output to file or printer as required. Colortrac Scan-Once technology coupled with presets for common document types gives untrained users the ability to quickly optimise image quality with good overall productivity.
-
Applications
- Small Office / Home Office
- Engineering Office
- CAD Drawing Office
- Architecture, Engineering & Construction drawings
- Utilities & Energy Management
- Facilities Management
- Electronic Data Capture (EDC)
- - See more at: http://www.colortrac.com/mfps/25-inch-professional-mfp-full-color-graphics-technical-documents/#tab_1-tab
· Small Office / Home Office
· Engineering Office
· CAD Drawing Office
· Architecture, Engineering & Construction drawings
· Utilities & Energy Management
· Facilities Management
· Electronic Data Capture (EDC)
-
Specifications
- See more at: http://www.colortrac.com/mfps/25-inch-professional-mfp-full-color-graphics-technical-documents/#tab_2-tabScanner Product SmartLF SC 25 mfp Maximum Scanning Speed @ 200dpi
Monochrome:
24bit RGB Color:13.00 inches/sec
3.00 inches/secSingleSensor Scanning Technology With 30,000 pixels giving 48-bit color and 16-bit greyscale data capture Scanning Resolution 1 600 dpi Maximum Image Width 25 inches (635 mm) Maximum Document Width 27 inches (686 mm) Maximum Media Thickness 2 0.08 inches (2.0 mm) flexible media Interface SuperSpeed USB 3.0 with up to 75MB/sec transfer rate Included Software SmartWorks EZ Touch Plus Notes: Thick documents up to 2mm must be flexible. Colortrac does not guarantee quoted speeds for thick media. Thick media should be scanned at reduced speeds to obtain optimal image quality. For heavy and/or thick materials the operator may need to support the document as it enters and exits the scanner. For larger sizes of heavy and/or thick media Colortrac recommend the scanner be placed first on a flat surface and the operator supports the document as it enters and exits the scanner. Colortrac recommends the Paper Return Guide be removed when using heavy and/or thick media in the scanner. Scanner Product
SmartLF SC 25 mfp
Maximum Scanning Speed @ 200dpi
Monochrome:
24bit RGB Color:13.00 inches/sec
3.00 inches/secSingleSensor Scanning Technology
With 30,000 pixels giving 48-bit color and 16-bit greyscale data capture
Scanning Resolution 1
600 dpi
Maximum Image Width
25 inches (635 mm)
Maximum Document Width
27 inches (686 mm)
Maximum Media Thickness 2
0.08 inches (2.0 mm) flexible media
Interface
SuperSpeed USB 3.0 with up to 75MB/sec transfer rate
Included Software
SmartWorks EZ Touch Plus
Notes: Thick documents up to 2mm must be flexible. Colortrac does not guarantee quoted speeds for thick media. Thick media should be scanned at reduced speeds to obtain optimal image quality. For heavy and/or thick materials the operator may need to support the document as it enters and exits the scanner. For larger sizes of heavy and/or thick media Colortrac recommend the scanner be placed first on a flat surface and the operator supports the document as it enters and exits the scanner. Colortrac recommends the Paper Return Guide be removed when using heavy and/or thick media in the scanner.
