HP DesignJet Z9+ V-Trimmer X9D24A – 44in PostScript® Printer | Professional Wide Format Printing
The HP DesignJet Z9+ V-Trimmer 44in Printer is built for busy print shops. This version includes the unique vertical trimmer, which saves time and reduces handling. Unlike other printers, it trims both horizontally and vertically, cutting to width as it prints.
Faster Finishing with V-Trimmer
The integrated V-trimmer is a game-changer. It cuts to the exact size you need from a larger roll. This feature is more flexible than standard borderless printing, where you are limited by the media roll width.
High-Quality Prints with Fewer Inks
The HP DesignJet Z9+ PostScript® series is designed for professional photo and art printing. It delivers outstanding colour and clarity with just nine inks. Thanks to HP Pixel Control and dual drop technology, it produces sharper details while using fewer cartridges.
Wide Media Handling Options
This printer supports a variety of media types:
- Photo paper
- Canvas
- Self-adhesive vinyl
- Banner
- Bond and coated paper
- Backlit media
Z9+ handles weights from 80 g/m² up to 500 g/m². A standard 2-inch spindle is included, with an optional 3-inch adapter for greater media choice. Brands such as Hahnemühle, Canson, Innova, and Xativa are fully supported, with ready-to-use ICC profiles.
Flexible Feeding and Take-Up Options
You can feed sheets from the front, or use the rear platen for thick boards up to 500 gsm. For roll-to-roll production, add the optional take-up reel for smooth post-print finishing.
Versatile Applications
The HP DesignJet Z9+ is ideal for:
- High-definition photographic prints
- Fine art reproductions
- Short-term outdoor graphics (fade and water resistant with the right media)
- Large format posters and display signage

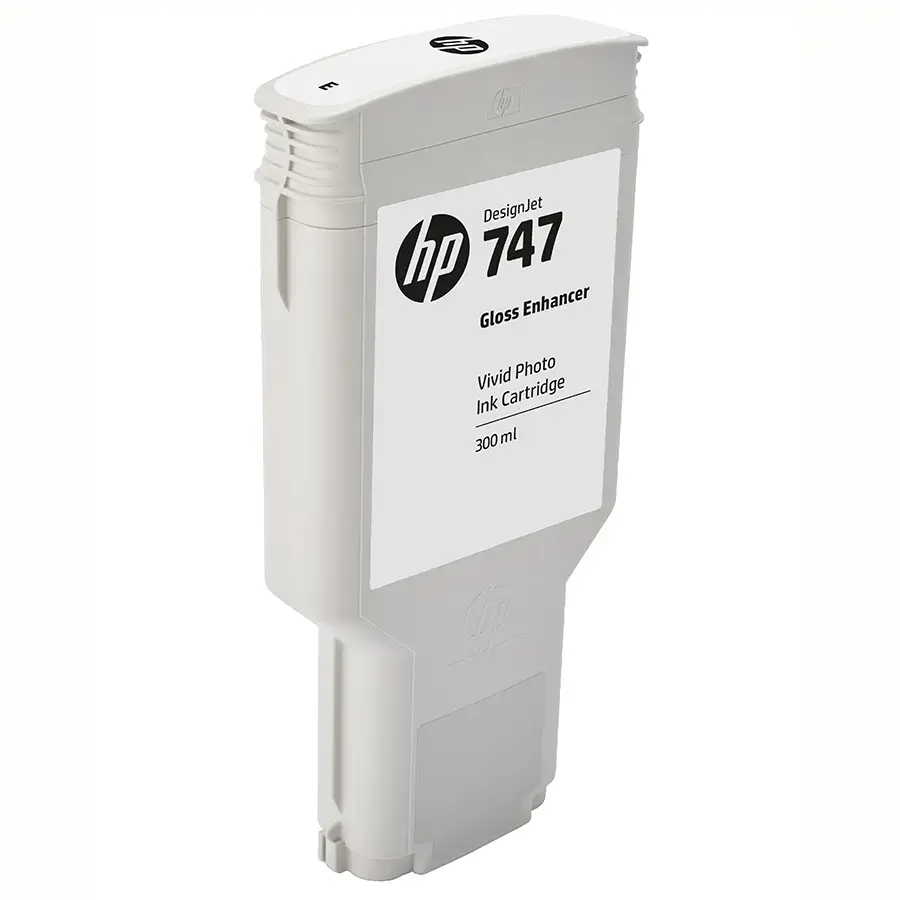

- Its nine-colour ink system includes RGB, red, blue, green, and grey inks. You can also add the Gloss Enhancer kit for perfect results on gloss media.
Power and Precision
This printer is built to handle complex files with ease. With powerful architecture and the Adobe PDF Print Engine, it ensures accuracy and speed.
Key Specifications
- Print Technology: HP Thermal Inkjet, 9 inks (optional gloss enhancer)
- Resolution: Up to 2400 × 1200 optimised dpi
- Line Precision: ±0.1% | Min line width 0.02 mm
- Media Handling: Sheets, rolls, thick media (up to 0.8 mm)
- Borderless Printing: On selected media
- Roll Widths: 11- 44 inch (44″ model)
- Optional: Dual roll & vertical trimmer (Pro models)
IT Manager Features
- Memory & Storage: 128 GB virtual memory | 500 GB self-encrypting HDD
- Connectivity: Gigabit Ethernet, USB, HP ePrint, HP Smart App
- File Support: Adobe PostScript 3, PDF, TIFF, JPEG, HP-GL/2, RTL
- Calibration: Built-in i1 spectrophotometer
- Energy Efficiency: ENERGY STAR® certified | <100 W printing
- Dimensions (44”): 1802 × 695 × 998 mm
