HP DesignJet Z6dr 44-inch PostScript Printer with V-Trimmer Plus Edition | T8W18D
44-inch graphics printer with dual rolls, six pigment inks, and integrated vertical trimming for posters, displays, and detailed maps.
A versatile graphics printer with finishing built in
The HP DesignJet Z6dr Plus Edition suits businesses producing a varied mix of large-format work. Print promotional posters, detailed maps and presentation graphics, with two rolls ready for the next job.

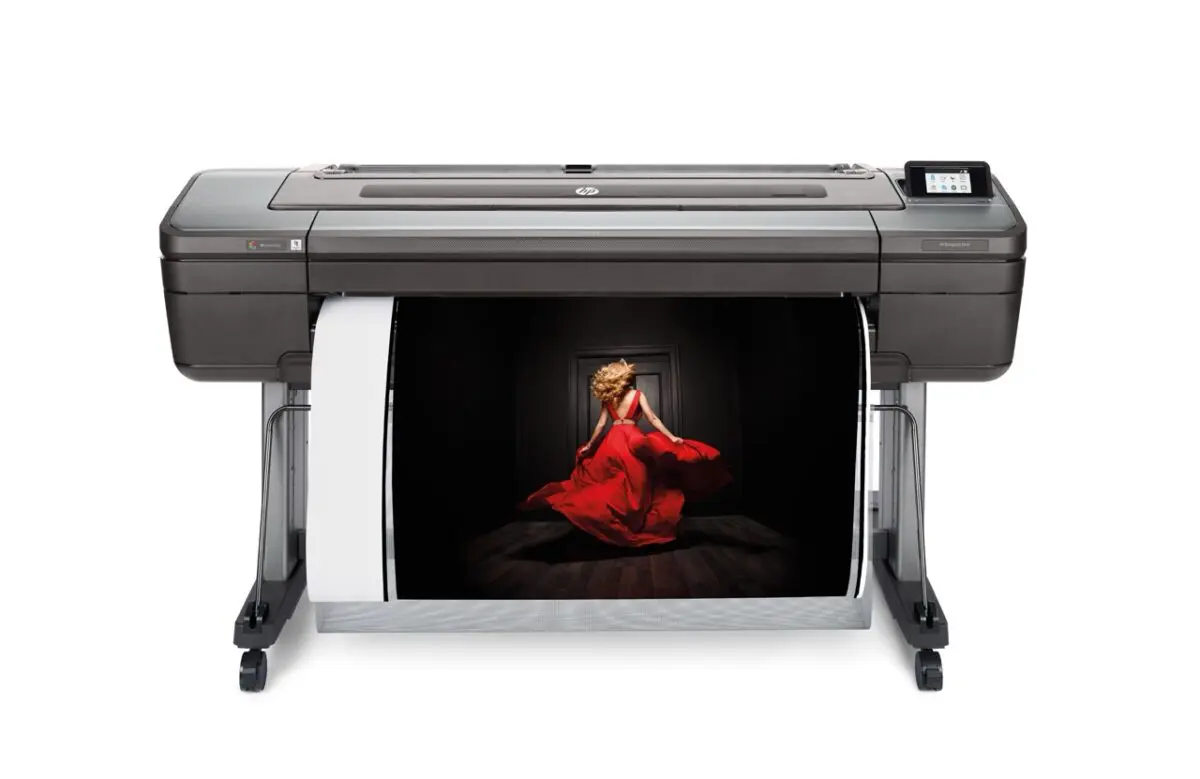

Its biggest attraction is the integrated V-Trimmer. Working alongside the horizontal cutter, it trims compatible prints to their finished size, reducing time at the cutting bench.
For print shops and in-house graphics teams, that means less handling between printing a job and getting it ready for use.
What can you print?
The Z6dr T8W18D handles applications including:
- Retail posters and point-of-sale displays.
- Exhibition and event graphics.
- GIS maps, aerial imagery and charts.
- Architectural renders and presentation boards.
- Photographic graphics and promotional images.
- Backlit displays on suitable film.
It is a useful all-rounder when your workload changes throughout the day.
Less time trimming posters

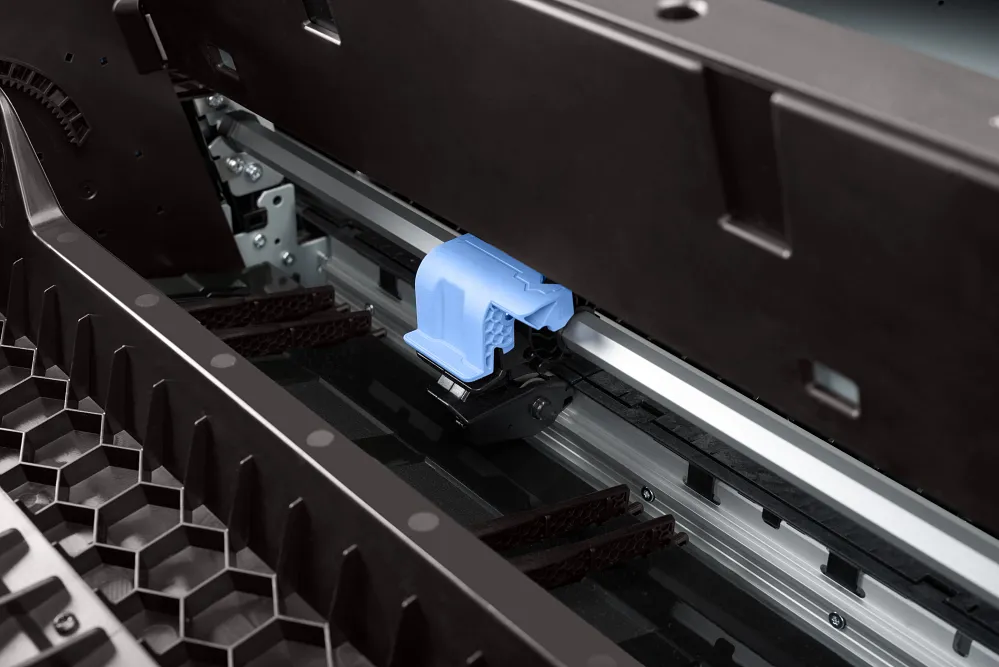

The vertical trimmer cuts the sides of your print as the job runs. The automatic horizontal cutter then cuts across the roll.
Together, they help produce finished rectangular graphics without a separate manual trimming stage.
You can also create narrower prints from a wider roll. That is useful when several customers need different poster sizes.
Trimming depends on the media and supported cutting limits. Many suitable materials, including most canvas, can be trimmed. Self-adhesive vinyl and other non-cuttable media are excluded.
Keep two media options loaded
Dual rolls let you keep different paper types or widths ready. Automatic roll switching selects the appropriate loaded roll according to your job settings.
Keep coated paper on one roll for maps and presentations, for example. Use the second for poster or photographic media.
You spend less time unloading paper when the next order needs something different. A top sheet feed also accommodates individual sheets.
Six pigment inks with chromatic red
The Z6dr uses cyan, magenta, yellow, chromatic red, matte black and photo black.
Chromatic red supports bold promotional graphics, while separate black inks accommodate different media finishes.
HP Pixel Control helps reproduce smooth gradients and complex colours. Dual-drop technology provides tonal variation without separate light inks.
HP Vivid Photo Inks offer water- and fade-resistant output on suitable media. For outdoor displays, choose the material and print profile to match the intended conditions.
Straightforward file submission
Adobe PostScript and PDF support suit artwork containing photographs, text, and vector graphics. The printer also handles technical formats including HP-GL/2.
HP Click provides batch submission and a print preview. Check your files before printing to help avoid unnecessary paper and ink waste.
Flexible media and optional take-up reel
Choose from compatible photographic papers, fine-art materials, coated papers, backlit films and other supported graphics media.
The recommended media range is 80 to 500gsm, with a maximum thickness of 0.8mm.
For longer roll-to-roll jobs, an optional 44-inch take-up reel collects output ready for subsequent finishing.
Running costs beyond the ink cartridge
The Z6dr uses individually replaceable 300ml ink cartridges. Replace the colour you need rather than a combined cartridge.
Finishing time matters too. Dual rolls reduce paper changes, while the V-Trimmer can remove a manual cutting stage from suitable jobs.
Actual costs depend on image coverage, paper choice and print settings. Compare the printer against your typical work rather than a single headline cost per print.
Security for shared workplaces
HP Wolf Pro Security includes secure boot, allowlisting and encrypted storage. PIN printing helps control the release of confidential documents.
HP Security Manager is available separately for organisations requiring additional fleet security management.
Is the Z6dr the right choice?
Choose the Z6dr Plus Edition when you need versatility across posters, displays, mapping and presentation graphics.
If photographic and fine-art reproduction dominate your workload, compare it with the HP DesignJet Z9+ dual-roll V-Trimmer model.
Speak to Plot it about your media, finished sizes and weekly workload. We can help you choose the right printer and discuss installation requirements.
Environmental considerations
The printer contains post-consumer recycled plastic and is ENERGY STAR certified. Eligible used HP cartridges and printheads can be recycled through HP Planet Partners.
