The NEW HP Designjet HD Pro Scanner capture's your wide-format documents with outstanding colour accuracy using the high-speed, high-definition, CCD scanning Technology Enhance images on the large touchscreen, and save documents to many file formats, including multipage PDFs. Scan to email, USB and network locations.
Width
40-44" / A0+

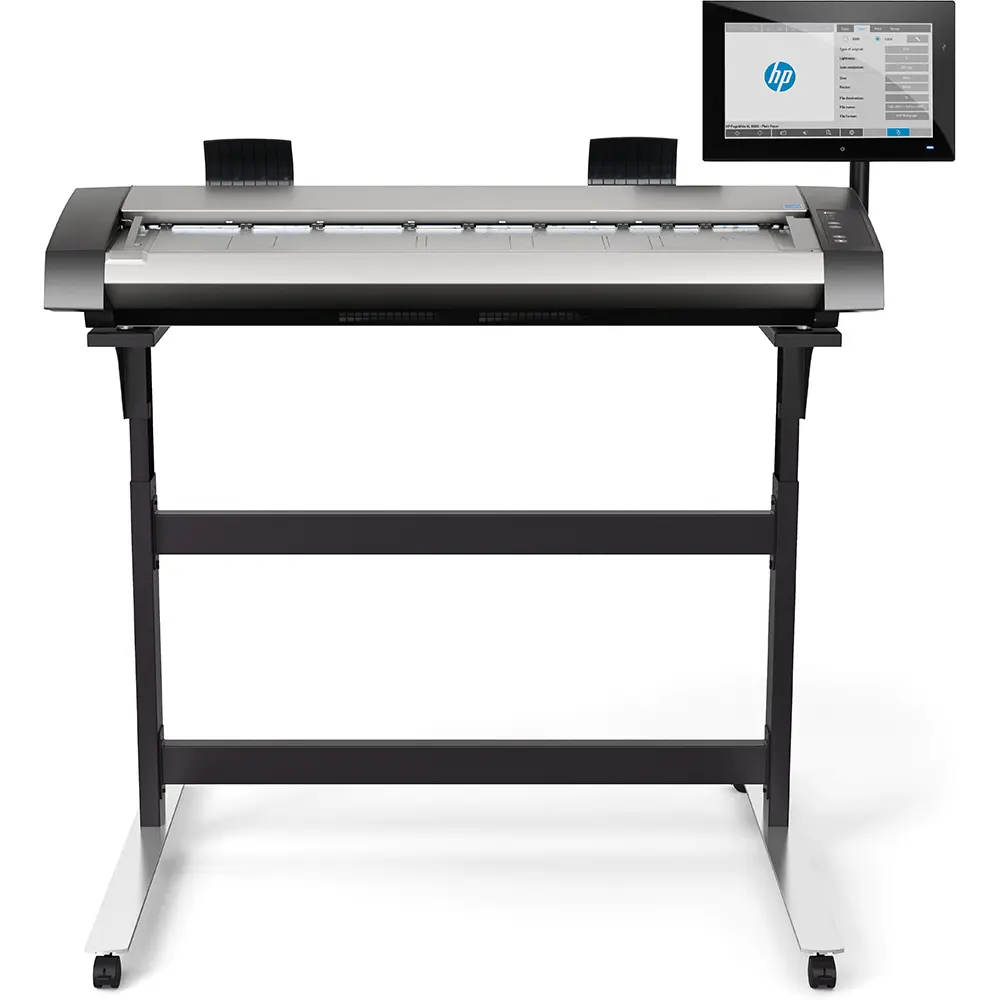

HP Designjet HD Pro 42" Scanner G6H51A
Turn your HP Designjet Plotter in to a wide-format colour copier with the addition of HP's new Pro scanner.
Would you like to talk to a specialist about this product?
All you need to know about the HP Designjet HD Pro 42″ Scanner G6H51A
Excellent image reproduction with CCD technology
• Reproduce colours with excellent accuracy thanks to CCD technology that ensures high-quality colour copying
• Efficiently handle complex data using an advanced five-camera system that captures images with high precision
• Ensure high-quality results without rescans—preview and enhance images directly on the large touchscreen
• Create large-format colour and black-and-white scans up to 42-inches wide from paper or film drawings as well as thick or rigid media
A fast HD scanner designed to streamline workflows
• Scan fast—up to 6 inches (15 cm) per second in colour &13 inches (33 cm) per second in black-and-white
• Accelerate your workflow; save scans as PDF, TIFF, JPEG, or DWF files and easily create multipage PDFs
• Be more productive and easily share images with collaborators by scanning to e- mail, USB, networks and more
• Work comfortably thanks to a 15.6-inch (39.6-cm) colour touchscreen and the three-level adjustable legs
Scan support customized for HP Designjet printers
• Build a multifunction system—this scanner is customized for seamless integration with HP Designjet printers
• Add new functions to your printing workflow with high-definition scanning, copying, and image enhancement
• Simplify your tasks—rely on a single interface for maintenance and support of your HP Designjet solution
Scan and copy Scan speed
Colour: up to 15 cm/sec (6 in/sec)
Grayscale: up to 33 cm/sec (13 in/sec)
Enhanced resolution 9600 dpi
Optical resolution 1200 dpi
Maximum scan Width: 1067 mm (42 in)
Thickness: Up to 15 mm (0.6 in)
Scan input modes: On the touchscreen: scan preview, scan to file, scan to
e-mail, scan to USB, scan to print, scan to FTP, copy, batch scanning, batch copying
Copier settings Type of original, image crop and align preview, lightness, saturation and RGB controls, white point and black point adjust, sharpen/blur, mirror copy, enlarge/reduce, paneling, tiling, nesting, accounting, batch, multipage PDF generation
Media
Handling Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media
Types Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Memory 2 GB memory, 500 GB hard disk
Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified
Drivers (included) Windows drivers for compatible HP Designjet printers
Dimensions (w x d x h)
Scanner 1510 x 720 x 1370 mm (59 x 28 x 54 in)
Shipping 1500 x 680 x 710 mm (59 x 27 x 28 in)
Weight Scanner 71 kg (157 lb)
Shipping 90 kg (198 lb)
What's in the box?
HP Designjet HD Pro Scanner, stand, touchscreen (panel PC), quick reference guide, setup poster, copy/scan software, documentation software, Ethernet cables (x2) & power cords
The below list of HP Designjet Printers are published at launch as being connectable devices, NEW devices will be available as they launch
Supported printers
HP Designjet 500 Printer series
HP Designjet 510 Printer series
HP Designjet 1050C/1055CM Printer series
HP Designjet 4000/4020 Printer series
HP Designjet 4500/4520 Printer series
HP Designjet 5100 Printer
HP Designjet 5500 Printer series
HP Designjet T520 ePrinter series
HP Designjet T610/T620 Printer series
HP Designjet T770 Printer series
HP Designjet T790 ePrinter series
HP Designjet T795 ePrinter
HP Designjet T1100 Printer series
HP Designjet T1120 Printer series
HP Designjet T1200 Printer series
HP Designjet T1300 ePrinter series
HP Designjet T2300 eMultifunction Printer series
HP Designjet T7200 Production Printer2
HP Designjet Z2100 Photo Printer series
HP Designjet Z3100 Photo Printer series
HP Designjet Z6100 Printer series
