HP DesignJet T230 24” A1 Printer 5HB07D

Function
Print Only

No. of Rolls
1 Roll

Width
24" / A1

Download
Brochure

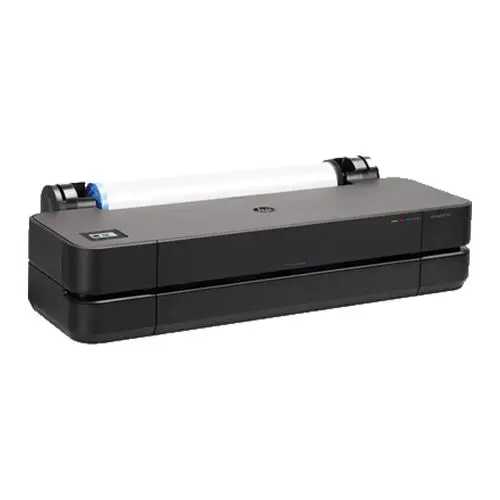

HP DesignJet T230 24” A1 Printer 5HB07D

The HP T230 is perfect for compact spaces and very low print volumes. Optional stand

What's Included

FREE Express Delivery | Free roll of Plot it plotter paper | Starter Inks, Print Head, Print Drivers, 12 month on-site parts and labour warranty. Includes any current HP offers pre-loaded.

£562.80 inc VAT

£469.00 ex VAT

Would you like to talk to a specialist about this product?

01905 454598 [email protected]

Make the HP DesignJet T230 24” A1 Printer 5HB07D even better with one of our bundles

Choose from carefully selected products that complement your purchase.

Option 1

HP DesignJet T230 24” A1 Printer 5HB07D

£562.80 inc VAT

£469.00 ex VAT

HP Designet T200/T600 24" Printer Stand (3C753A)

£209.99 inc VAT

£174.99 ex VAT

Total:

£786.00 inc VAT
£655.00 ex VAT

Option 2

HP DesignJet T230 24” A1 Printer 5HB07D

£562.80 inc VAT

£469.00 ex VAT

HP Designet T200/T600 24" Printer Stand (3C753A)

£209.99 inc VAT

£174.99 ex VAT

HP DesignJet T200/T600 Auto Sheet Feeder (8AJ60A)

£124.79 inc VAT

£103.99 ex VAT

Total:

£900.00 inc VAT
£750.00 ex VAT

CAD Plot 80 Inkjet Plotter Paper 80g/m² 594mm x 45m

From

£11.88inc VAT

£9.90ex VAT

Add to basket

CAD Plot 140 Matte Coated Presentation inkjet Paper 140g/m² 594mm x 30...

From

£26.04inc VAT

£21.70ex VAT

Add to basket

CAD Plot 90 Inkjet Plotter Paper 90g/m² A1 594mm x 50m roll

From

£13.07inc VAT

£10.89ex VAT

Add to basket

CAD Plot 90 Inkjet Plotter Paper 90g/m² A1 594mm x 50m roll (Box 4)

From

£45.54inc VAT

£37.95ex VAT

Add to basket

HP 712 3ED67A DesignJet T230 T250 T630 T650 & Studio Cyan 29ml In...

From

£28.79inc VAT

£23.99ex VAT

Add to basket

HP 712 3ED68A DesignJet T230 T250 T630 T650 & Studio Magenta 29ml...

From

£28.79inc VAT

£23.99ex VAT

Add to basket

HP 712 3ED69A DesignJet T230 T250 T630 T650 & Studio Yellow 29ml ...

From

£28.79inc VAT

£23.99ex VAT

Add to basket

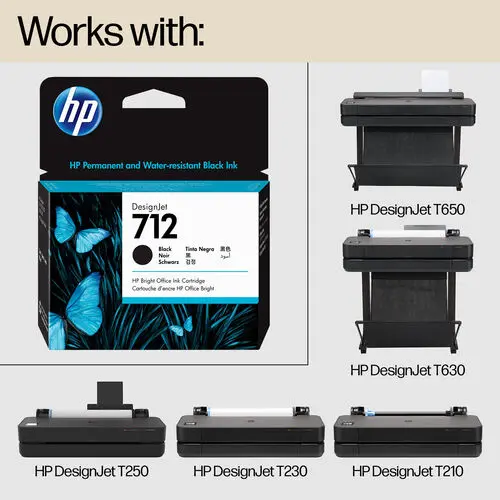

HP 712 3ED70A DesignJet T230 T250 T630 T650 & Studio Black 38ml I...

From

£35.39inc VAT

£29.49ex VAT

Add to basket

HP 712 3ED71A DesignJet T230 T250 T630 T650 & Studio Black 80ml I...

From

£57.59inc VAT

£47.99ex VAT

Add to basket

HP 712 3ED77A DesignJet T230 T250 T630 T650 & Studio Cyan 29ml In...

From

£65.99inc VAT

£54.99ex VAT

Add to basket

HP 712 3ED78A DesignJet T230 T250 T630 T650 & Studio Magenta 29ml...

From

£65.39inc VAT

£54.49ex VAT

Add to basket

HP 712 3ED79A DesignJet T230 T250 T630 T650 & Studio Yellow 29ml ...

From

£65.39inc VAT

£54.49ex VAT

Add to basket

HP 713 3ED58A Printhead Replacement Kit

From

£203.39inc VAT

£169.49ex VAT

Add to basket

HP Designjet T230 and T250 Paper Rolls

From

£11.64inc VAT

£9.70ex VAT

Add to basket

HP B3Q36A 24″ Spindle T120 T125 T130 T230 T250 T520 T525 T530 T6...

From

£58.79inc VAT

£48.99ex VAT

Add to basket

HP Designet T200/T600 24″ Printer Stand (3C753A)

From

£209.99inc VAT

£174.99ex VAT

Add to basket

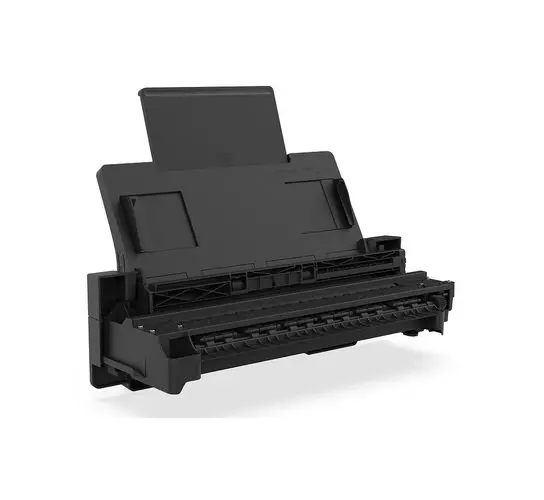

HP DesignJet T200/T600 Auto Sheet Feeder (8AJ60A)

From

£124.79inc VAT

£103.99ex VAT

Add to basket

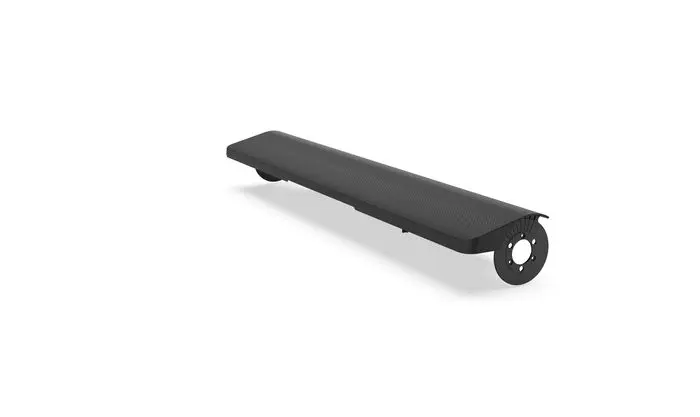

HP DesignJet T230 T250 T630 Roll Cover 9GF94A

From

£88.68inc VAT

£73.90ex VAT

Add to basket

USB 2.0 A to B Wide-format Printer Cable 5 m

From

£4.79inc VAT

£3.99ex VAT

Add to basket

HP DesignJet T250 24” Printer 5HB06D

From

£684.00inc VAT

£570.00ex VAT

Add to basket

HP DesignJet T630 24” Printer 5HB09D

From

£1,002.00inc VAT

£835.00ex VAT

Add to basket

HP DesignJet T650 24” Printer 5HB08D

From

£1,135.14inc VAT

£945.95ex VAT

Add to basket

HP Designjet T230 Care Pack Extended Warranty Service Support

From

£155.88inc VAT

£129.90ex VAT

Add to basket

All you need to know about the HP DesignJet T230 24” A1 Printer 5HB07D

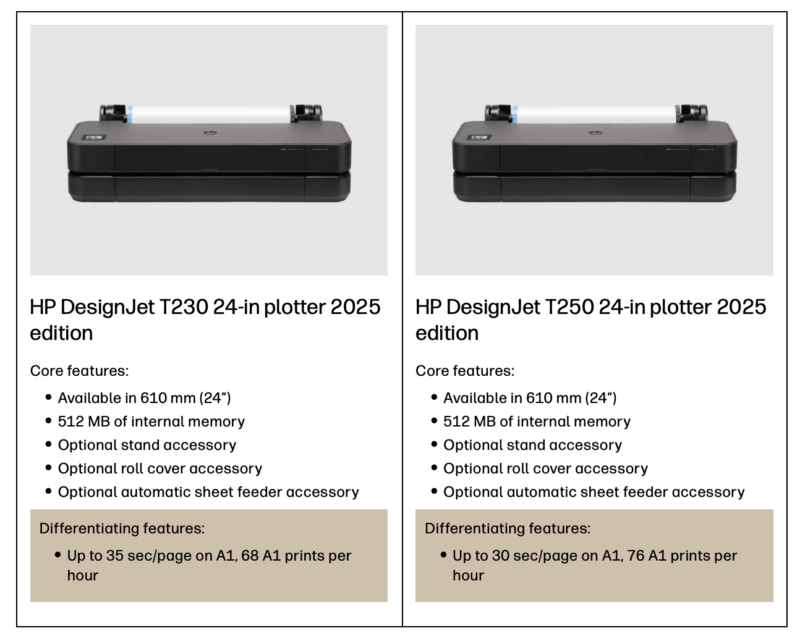

Description Tech specs Model Comparison T230 FAQ's Accessories & Ink Supplies Videos

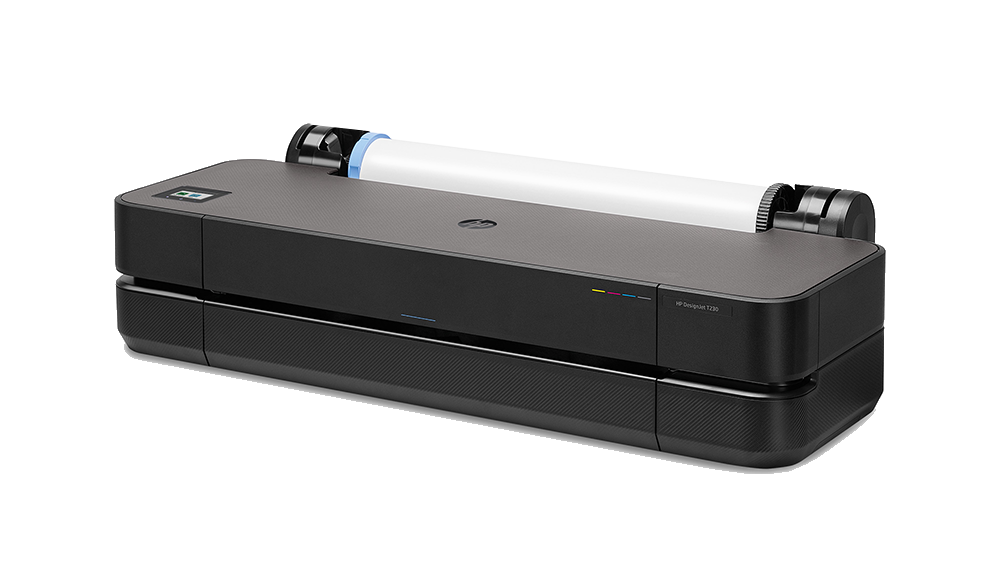

HP DesignJet T230 – Reliable 24″ Large-Format Printer

Streamlined Wide-Format Printing for Professionals

Fast, reliable, and compact desktop A1 wide-format printer for CAD, GIS, and technical drawings. Print full-colour or monochrome schematics with consistent precision. Wireless and mobile-ready. Perfect for small offices and project teams needing professional-quality output with minimal downtime.

The HP DesignJet T230 A1 24-inch printer is perfect for CAD drawings, GIS projects, and technical plans, it combines compact design with professional-grade output. Print directly from your desktop or mobile device using HP Smart app. This printer ensures high-quality results, minimal downtime, and easy integration into small offices or project teams.

Key Benefits of the HP DesignJet T230

Print up to 24 inches wide with consistent line accuracy.
Fast and precise printing for CAD, GIS, and maps.
Wireless printing from laptops, tablets, and smartphones.
Compact design saves office space without compromising quality.
User-friendly interface simplifies printer management.
Supports high-quality ink and media options for professional finishes.

Perfect for CAD, GIS, and Technical Prints

The HP DesignJet T230 handles detailed line drawings with clarity. Colour accuracy stays consistent across technical plans and maps. You can print full-colour presentations or monochrome schematics with minimal setup time. With HP’s market leading app and print driver “HP Click for DesignJet” you can benefit from error free CAD printing

Fast, Efficient, and Space-Saving

Small offices and project teams benefit from the T230’s speed and reliability. Replace rolls easily and reduce downtime. Wireless connectivity enables mobile printing, while the compact footprint fits tight office spaces.

Reliable Features for Every Office

The HP DesignJet T230 combines technology and usability to meet professional needs:

A1/A2 roll printing with optional cut-sheet support
HP Smart app support for seamless workflow
Automatic colour calibration for consistent output
Environmentally responsible design with ENERGY STAR® certification

Why Choose HP DesignJet T230

Transition smoothly from your desktop to professional large-format printing. The T230 reduces errors, saves time, and delivers precise, high-quality output every time. It is ideal for architects, engineers, and small design offices looking for a reliable, low-volume compact plotter.

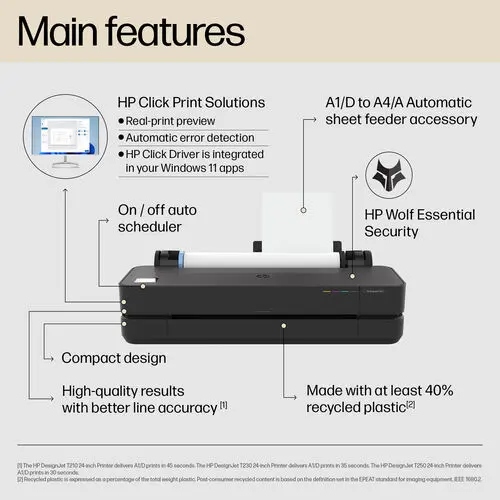

Key Features at a Glance

Compact 24” large-format printer for A1 output
Print speed: 35 seconds per A1 page
Resolution: up to 2400 x 1200 dpi
HP Bright Office Inks for line accuracy and vivid colour
HP Click software + HP App for easy printing
Wi-Fi, Ethernet, USB, and Wi-Fi Direct connectivity
Eco design with recycled plastic and metal parts
Up to 65% energy savings with auto on/off
HP Wolf Essential Security protection

Memory: 512 MB

What’s in the box: HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Security features: HP Wolf Essential Security: Secure boot with HW root of trust, Firmware Code, Signature Validation, Automatic FW Updates, HTTPS Redirect enabled by default, SNMPv1/2 read-only by default, SNMPv3 disabled by default, Write-protected memory, HP Cartridge Security, Unique password, Disable USB ports, TLS 1.2
802.1x, IPv4 & IPv6 Compatibility, CA/JD Compatibility

Weight: 21.5 kg

Package weight: 27 kg

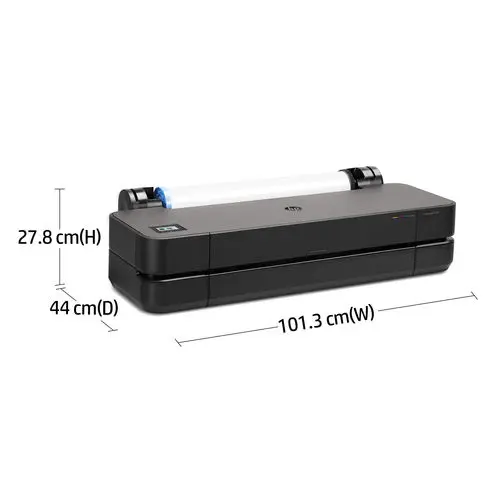

Dimensions (W x D x H):1013 x 440 x 285 mm

Package dimensions (W x D x H): 1155 x 575 x 405 mm

PowerInput voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS

Manufacturer Warranty: One-year limited hardware warranty

Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges

Ink types: Dye-based (C, M, Y) pigment-based (K)

Print Cartridge/Bottle, Colour(s): Cyan, magenta, yellow, black

Ink drop: 5.5 pl (C, M, Y) 12 pl (K)

Print cartridge/bottle volume: 80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge

Print head nozzles: 1376

Print heads: 1 (cyan, magenta, yellow, black)

High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines

Functions: Print

Print quality color (best): Up to 2400 x 1200 optimised dpi

Internal Storage: None

Print speed: 35 sec/page on A1, 68 A1 prints per hour[1]

Print technology: HP Thermal Inkjet

Print languages: JPEG, URF

Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11

Model size: 610 mm

Remote print enabled: Yes

Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)

Non-printable area (roll media): 5 x 5 x 5 x 5 mm

Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing

Line accuracy: ±0.1%[3]

Theoretical minimum line width: 0.02 mm

Print multi-size files in one click: Yes

Maximum optical density (black): 8 L* min/2.10 D[4]

Media sizes supported: A4, A3, A2, A1

Media sizes, custom: 210 x 279 to 610 x 1897 mm

Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended: 60 to 280 g/m²

Media width, maximum: 610 mm

Supported Primary Applications: Line drawings, Presentations, Renderings

Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610mm x 45.7m, C6019B HP Coated Paper (FSC® certified) (recyclable) 610mm x 45.7m, C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610mm x 30.5m

Media sizes standard (metric rolls): 279 to 610mm

Finished output handling: Sheet feed, roll feed, automatic horizontal cutter

Roll external diameter: 100mm

Roll maximum input: 1

Roll maximum weight: 4.1kg

Media thickness: Up to 11.8mil

Media thickness (metric): Up to 0.3mm

Technical features: Wi-Fi, Colour Touchscreen, Start-up Ink Cartridges, USB port for PC connection, Max resolution 2400 x 2400 dpi, Roll cover accessory, Automatic sheet feeder accessory, Output stand bin accessory

HP DesignJet T230 24” Printer (2025 Edition) FAQ

Offers compact A1 printing with sharp detail, Wi-Fi connectivity, and HP Click software.Ideal for architects & engineers and features a sustainable design made with up to 40% recycled plastic.

What is the HP DesignJet T230 printer?

The HP DesignJet T230 is a compact A1 printer for architects, engineers, and construction professionals.

It delivers sharp line drawings and vibrant colour prints using HP Bright Office Inks.

How fast does the HP T230 print?

The T230 prints an A1 page in as little as 35 seconds. It combines high speed with a resolution of up to 2400 x 1200 dpi.

What software is available for the HP T230?

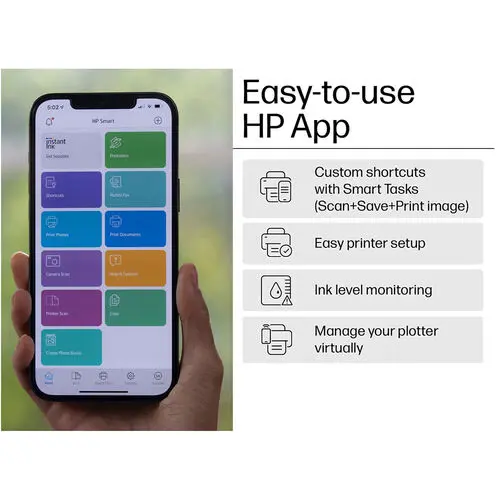

HP Click software is a free download that allows one-click printing from PDFs. Users can also manage jobs remotely with the HP app.

Does the HP T230 have wireless printing?

Yes. The T230 supports Wi-Fi, Wi-Fi Direct, Gigabit Ethernet, and USB 2.0. It can also be paired with an optional sheet feeder and stand.

Is the HP DesignJet T230 eco-friendly?

Yes. It is made with 40% recycled plastic and 5% recycled metal. Packaging uses 73% less plastic than older models. Ink maintenance routines reduce ink use by up to 96%.
