HP DesignJet T250 24" A1 Printer

Memory: 512 MB

What’s in the box: HP DesignJet T250 24-in printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, and power cord

Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Security features: HP Wolf Essential Security: Secure boot with HW root of trust, Firmware Code Signature Validation, Automatic FW Updates, HTTPS Redirect enabled by default, SNMPv1/2 read-only by default, SNMPv3 disabled by default, Write-protected memory, HP Cartridge Security, Unique password, Disable USB ports, TLS 1.2, 802.1x, IPv4 & IPv6 Compatibility, CA/JD Compatibility

Weight: 21.5 kg

Package weight: 27kg

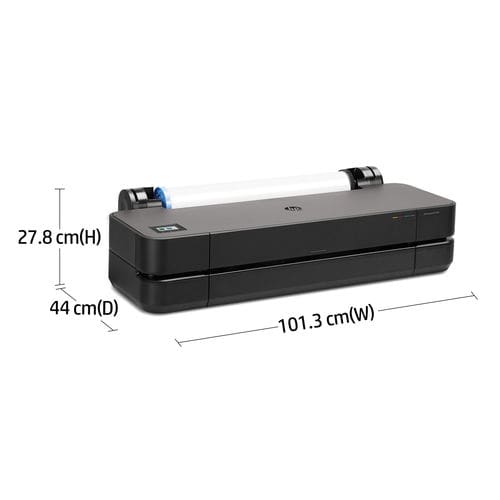

Dimensions (W x D x H): 1013 x 440 x 285mm

Package dimensions (W x D x H): 1155 x 575 x 405mm Power Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android, and iOS Manufacturer Warranty: Two-year limited hardware warranty

Print cartridges/bottle, number: 4 (C, M, Y, K) cartridges ink types: Dye-based (C, M, Y), pigment-based (K)

Print cartridge/bottle, colour(s): Cyan, magenta, yellow, black Ink drop: 5.5pl (C, M, Y), 12pl (K)

Print cartridge/bottle volume: 80ml (K), 38ml (K), 29ml (C, M, Y) per cartridge

Print head nozzles: 1376 print heads: 1 (cyan, magenta, yellow, black)

High capacity of page yield (colour): 20ml of ink yields 101 A1 pages, taking into account maintenance routines

Functions: Print

Print quality colour (best): Up to 2400 x 1200 optimised dpi Internal

Storage: None

Print speed: 30 sec/page on A1, 76 A1 prints per hour

Print technology: HP Thermal Inkjet Print languages: JPEG, URF

Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11

Model size: 610mm

Remote print enabled: Yes

Non-printable area (cut-sheet): 5 x 5 x 5 x 17mm (manual feed), 5 x 5 x 5 x 5mm (input tray)

Non-printable area (roll media): 5 x 5 x 5 x 5mm

Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, printing support for ChromeOS, and email printing

Line accuracy: ±0.1%

Theoretical minimum line width: 0.02mm

Print multi-size files in one click: Yes

Maximum optical density (black): 8 L* min/2.10 D

Media sizes supported: A4, A3, A2, A1

Media sizes, custom: 210 x 279 to 610 x 1897mm

Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended: 60 to 280g/m²

Media width, maximum: 610mm

Supported primary applications: Line drawings, presentations, renderings

Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610 mm x 45.7 m C6019B HP Coated Paper (FSC® certified) (recyclable) 610 mm x 45.7 m C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610 mm x 30.5 m

Media sizes standard (metric rolls): 279 to 610mm

Finished output handling: Sheet feed, roll feed, and automatic horizontal cutter

Roll external diameter: 100mm

Roll maximum input: 1

Roll maximum weight: 4.1kg

Media thickness: Up to 11.8mil

Media thickness maximum (metric): Up to 0.3mm

Product disclaimer: This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

Technical features: Wi-Fi, colour touchscreen, start-up ink cartridges, USB port for PC connection, max resolution 2400 x 2400 dpi, roll cover accessory, automatic sheet feeder accessory, output stand bin accessory

HP DesignJet T250 FAQs

What’s the difference between the HP DesignJet T230 and T250?

The HP DesignJet T250 offers slightly faster print speeds for improved productivity and comes with a 2-year warranty (compared to 1-year on the T230), making it the better long-term choice for busy technical environments.

What can I print with the T250?

The “T” stands for technical, meaning this A1 printer is designed for technical drawings such as CAD plots, building plans, and architectural designs. It’s ideal for A1, A2, and A3 prints. For automatic printing of A3 or A4 sheets, we recommend adding the optional sheet feeder accessory as a must.

What papers and media can I use?

The T250 supports both HP and third-party inkjet plotter papers, including brands such as CAD Plot. It also works with tracing paper, drafting film, and satin/gloss papers.

Important notes on media:

• Use plotter paper no longer than 50m, with a 2″ (50mm) core.
• For heavier presentation papers, maximum roll length is 30m.

Can I print on canvas, scrim/polyprop, or photo media?

No. The T250 uses CMY dye-based inks, which are not light-fast or water-resistant. Prints on these media types will fade within a few months, so it’s not recommended for art prints, banners, or photos. For poster printing, the HP DesignJet T870 is a great alternative. For canvas and banners/general graphics, the Z6 is ideal.

What drawing sizes can I print?

• Rolls: Load up to 594mm wide to print A1 and A2 drawings.
• Sheets: Optional sheet feeder allows automatic printing of A3 and A4 sheets.

We recommend using the HP DesignJet Click app, which provides a seamless workflow with automatic switching between roll and sheet media.

Can I print longer lengths?

Yes. The T250 can print up to 610mm wide and as long as needed, limited only by file size and processing. It can handle technical drawings 2–3 meters long without issues.

Can I print from a Mac?

Yes. The HP DesignJet T250 supports macOS via HP drivers, the HP DesignJet Click app, and also Apple AirPrint for driverless printing.

Can I print from a USB stick?

No. Direct USB printing is not supported.

Does the T250 support wireless printing?

Yes. The printer supports Wi-Fi and Ethernet connectivity, allowing easy printing from desktops, laptops, and mobile devices. You can also print via a USB cable.

Is the T250 suitable for a small office?

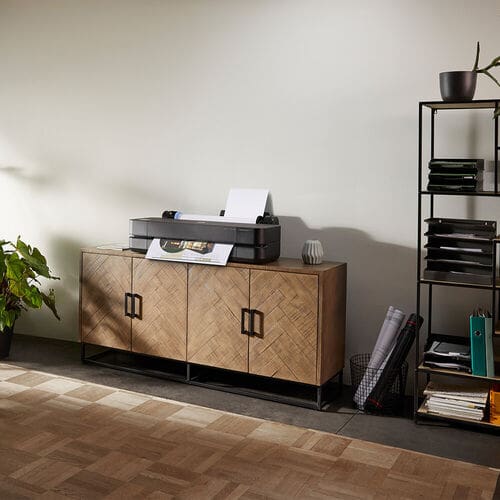

Yes. Its compact design fits easily into small offices or studios while still producing professional large-format prints. It’s light enough for a desktop, and even a sturdy wall shelf. Alternatively, you can add the stand for the most compact A1 free-standing plotter.

Is the T250 suitable for a construction company?

Yes. The T250 is designed for AEC (architecture, engineering, and construction) and manufacturing environments, but it’s classed as an ultra-low volume printer. It’s ideal for light use. For higher-volume printing, the HP DesignJet T870 is recommended, as it offers a lower total cost of ownership (TCO) over time due to a lower cost per print.

What software is recommended for workflow?

HP recommends using the HP DesignJet Click app for seamless media management, job tracking, and automatic roll-to-sheet switching.

ACCESSORIES:

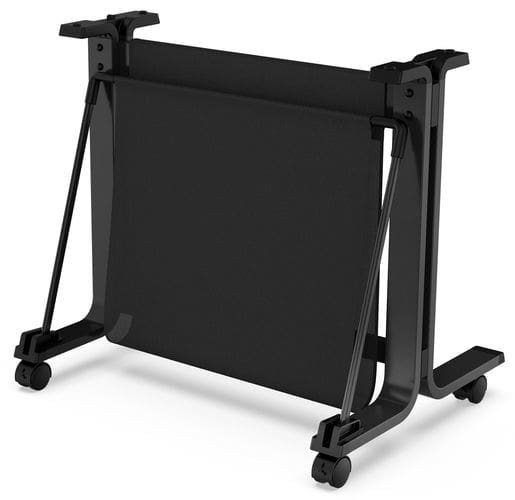

HP Designet T200/T600 24” Printer Stand (3C753A)

HP DesignJet T200/T600 Automatic Sheet Feeder (8AJ60A)

HP DesignJet T200/T600 24“ Roll Cover (9GF94A)

HP DesignJet 24” Spindle (B3Q36A)

INK SUPPLIES:

HP 713 | DesignJet Printhead Replacement Kit | 3ED58A

HP 712 | 29ml Cyan DesignJet Ink Cartridge | 3ED67A

HP 712 | 29ml Magenta DesignJet Ink Cartridge | 3ED68A

HP 712 | 29ml Yellow DesignJet Ink Cartridge | 3ED69A

HP 712 | 38ml Black DesignJet Ink Cartridge | 3ED70A

HP 712 | 80ml Black DesignJet Ink Cartridge | 3ED71A

HP 712 | 3-pack 29ml Cyan DesignJet Ink Cartridge | 3ED77A

HP 712 | 3-pack 29ml Magenta DesignJet Ink Cartridge | 3ED78A

HP 712 | 3-pack 29ml Yellow DesignJet Ink Cartridge | 3ED79A
