Neolt SHIELD 165 (Cold Lamination) Pneumatic Laminator (NL165CW)

Width
151 - 250cm

Download
Brochure

Neolt SHIELD 165 (Cold Lamination) Pneumatic Laminator (NL165CW)

Adapt to the widest range of applications, from car-wrapping to interior decoration & paper transformation industry!

Price on application

Rent this product, find out more

Would you like to talk to a specialist about this product?

01905 454598 [email protected]

All you need to know about the Neolt SHIELD 165 (Cold Lamination) Pneumatic Laminator (NL165CW)

Description Tech Specs Other related models Options/Accessories "COLD" Lamination VS "HOT" Lamination Video

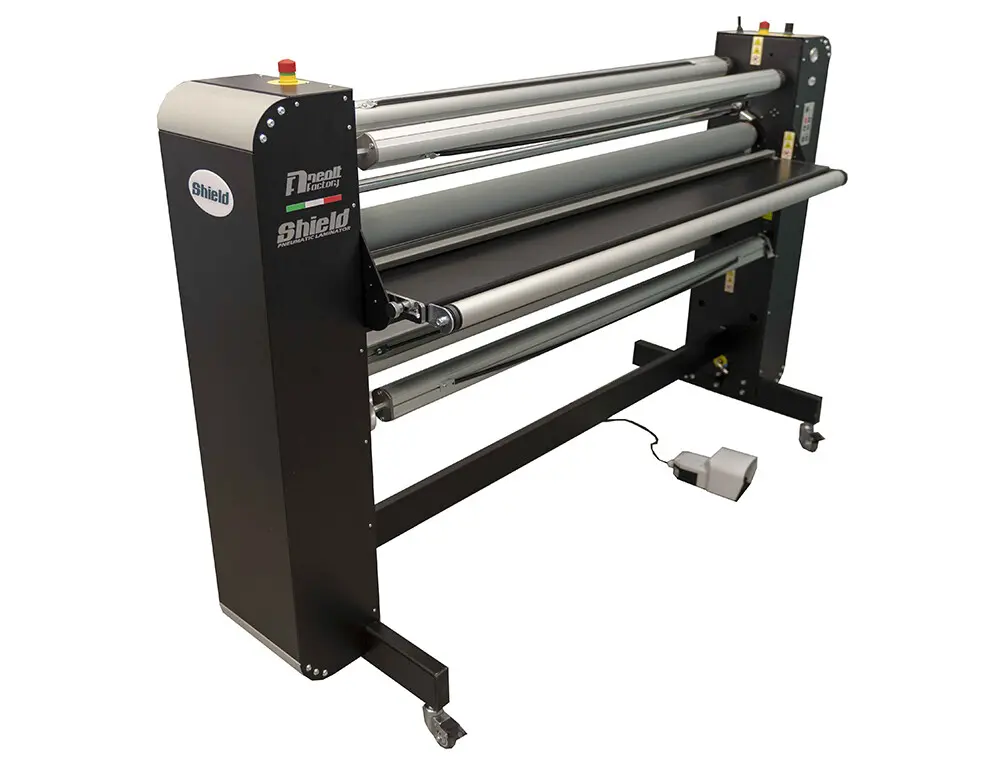

Neolt SHIELD 165 (Cold Lamination) Pneumatic Laminator (NL165CW):

Designed and manufactured to adapt to the widest range of applications, from car-wrapping to the interior decoration and paper transformation industry. With its pneumatic technology, the Shield series reduces the setup time of the machine even for unskilled operator & reduces production errors.

The Eco-sustainable air pressure system has much lower energy consumption compared to electric motor laminators and has far superior accuracy in determining subrate thickness. The air pressure system utilises independent pistons which automatically adjust to different media thicknesses and manages the flatness defects of substrates with rollers being adapted to the surface in real time.

Maximum working width: 1650mm

Please refer to the “Other related models” tab for links to the wider 2050mm version.

MAIN FEATURES:

PLUG & PLAY Neolt shield laminators are equipped with an internal compressor – Plug in, let the machine reach its temperature and start working!
ECO-SUSTAINABLE The air pressure system requires much lower energy consumption compared to electric motors.
SELF-ADAPTIVE Independent pistons automatically adjust to different thicknesses and the manages the flatness defects of the substrate. The rollers adapt to the surface in real time.
FLEXIBLE Pre-set the pressure applied to each substrate whilst retaining the option to manually adjust pressure during the laminating process.
ADDITIONAL OPTIONS / ACCESSORIES: Please refer to “Options/Accessories” Tab for full list.

DIMENSIONS: 217cm x 78cm x 140cm

MAX WORKING WIDTH: 1650mm.

MAX SPEED: 4m/min.

MAX LAMINATING THICKNESS: 30mm

DEPTH (TABLE INCLUDED): 770mm.

HEIGHT (WORKING TABLE): 910mm.

NET WEIGHT: 183Kg.

SYSTEM REQUIREMENTS: 230v – 50Hz / 110v – 60Hz

POWER CONSUMPTION: Max. 2,5A – 400W

COMPRESSED AIR: 6Bar

Neolt | SHIELD 1650 | (Cold Lamination) Pneumatic Laminator | NL165CW

Neolt | SHIELD 2050 | (Cold Lamination) Pneumatic Laminator | NL205CW

OPTIONS	SHIELD 165	SHIELD 205
STOP DROP ROLL	NL165CW/1650A	NL205CW/2050A
FEET	NL165CW/1650B	NL205CW/2050B
RE-WINDER	NL165CW/1650C	NL205CW/2050C
FRONT ROLL	NL165CW/1650D	NL205CW/2050D
BACK ROLL	NL165CW/1650E	NL205CW/2050E
FILM STRETCHER	NL165CW/1650F	NL205CW/2050F
GUIDE SHEET	NL165CW/1650G	NL165CW/1650G
VERTICAL CUT	NL165CW/1650H	NL205CW/2050H
ROLL HOLDER WITH CLUTCH	NL165CW/1650I	NL205CW/2050I
RESISTOR 50°C	NL165CW/1650R	NL205CW/2050R

COLD LAMINATION ADVANTAGES:

Requires less maintenance and set-up time, inexpensive, and easier to use.
pressure from the rollers of a cold laminator will remove the unsightly bubbles that sometimes occur with a laminate.
In general, colours and quality of the printed document are typically better in comparison. The heat of a hot laminator can cause colours to bleed or degrade.
Excellent option for adhesive decorations and decals because only one side of a graphic can be laminated.

HOT LAMINATION ADVANTAGES:

Provides more durable protection and typically a faster laminate job.
Additional laminating applications including a variety of heat settings.
Materials used in a hot laminator generally cost much less than the materials used in a cold laminator.
The high heat generated by a hot laminator can damage some materials, inks, and colours. To protect documents from the impact of heat, special plastic laminates can be used.
It may take some time and experience to master the skill of using a hot laminator successfully. If the users are not careful, the heating elements can cause serious danger to them.
