Fully integrated large-format sheet feeder to speed up your end-to-end cut-sheet workflow.
Take productivity to the next level, complete your end-to-end cut sheet workflow with fast, reliable operation. The HP PageWide XL Pro Sheet Feeder is available as an accessory for the HP PageWide XL Pro printer series. It prints directly onto cut sheets of compatible paper. The sheet feeder tray can hold up to 400 sheets although this capacity might be less depending on the weight of the paper.
The supported sheet size ranges from A2 short edge first (portrait) to B1 long edge first (landscape). The minimum supported width is 420mm and the maximum is 1020mm. The recommended lengths go from 520mm to 850mm.

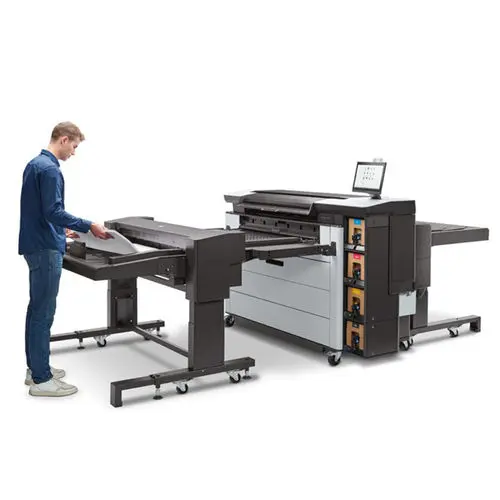

Once the sheets are loaded into the tray, use the guides to adjust the alignment. Once the loading process has been launched the tray automatically raises to height depending on the number of sheets. The fan can be switched off to aerate the stack of paper to improve the paper feed. The grip wheels, positioned along the entire width of the sheet feeder, grab the sheets from the tray and send them to the bridge. The bridge connects the sheet feeder and printer and has two belts that transport the sheet into the input tray.
FEATURES:
- 1. Feeding of sheets between 120 to 200gsm
- 2. Bridge feeding sheets to the printer
- 3. Rear tray stop / Lateral tray stop
- 4. Switch enabling air current for optimizing
- 5. Calibration wheel
- 6. Adjustable height
- 7. Stopper and Accessory table for Pro Stacker to ensure alignment
- 8. Easy access to rolls and input tray
- 9. Cut-sheet loading
END-TO-END CUT SHEET WORKFLOW:
- Accept demands for different sizes and media types from 120 to 1050gsm media or up to 2 mm (5/64 inch) thick sheet.
- Gain flexibility for short runs with fast feeding of cut sheet and boards up to 5 cm (1968 mils) of media height from A2 to B1 sizes.
HIGH PRODUCTIVITY:
- Accommodate urgent demands with a first page out in 20 seconds and total throughput up to 500 m²/hr.
- Convenient sheet feeder delivers intuitive operation with simple, guided instructions from the front panel.
FULLY INTEGRATED SOLUTION:
- Reliable workflow includes bi-directional communication between the printer and sheet feeder.
- Easily monitor your sheet feeder from the printer's front panel, HP SmartStream, or certified RIP solution.
