HP DesignJet T650 24” Printer 5HB10D
The HP 5HB10D DesignJet T650 24” printer is a professional-grade large-format printer crafted for architects, engineers, and technical designers. It combines precision, speed, and intelligent software to deliver exceptional CAD drawings, technical line work, and high-detail graphics with consistent quality.
Fast A1 printing
The HP DesignJet T650 prints A1 drawings in just 25 seconds, slightly faster than the T630, while maintaining up to 76 A1 prints per hour. Its 2400 x 1200 optimised dpi resolution guarantees crisp lines and vibrant colours, ensuring professional results for all technical and creative projects.
Advanced media handling
The T650 supports media widths up to 610mm, accommodating both roll and sheet feeds. Some key media handling features include:
- Automatic sheet feeding and cutting
- Media bin for efficient output collection
- Roll cover included for dust protection and media stability
These enhancements minimise interruptions and reduce manual handling, making the T650 ideal for medium-to-high output offices and studios.
Exceptional colour accuracy and ink system
The T650 uses a 4-cartridge ink system:
- Dye-based cyan, magenta, and yellow
- Pigment-based black for sharp lines and high contrast
This ensures enhanced colour fidelity and precise line accuracy, perfect for detailed technical drawings.
Streamlined workflow and software integration
Boost productivity with HP Click and the HP Smart app:
- HP Click: Submit multi-page PDFs and other files for one-click printing
- HP Smart app: Monitor and manage print jobs remotely
- Connectivity: Wi-Fi, Wi-Fi Direct, Gigabit Ethernet, and USB 2.0
The T650 also features twice the memory of T200 series models, allowing faster processing of complex files and uninterrupted workflow.
Sustainability and energy efficiency
The T650 is designed with sustainability in mind:
- ENERGY STAR® certified with EPEAT registration
- Reduces energy use by up to 65% with automatic on/off scheduling
- Built with at least 40% recycled plastic and recycled metal components
- Fibre-based packaging minimises environmental impact
Professional printing has never been more environmentally responsible.
Security and reliability
HP Wolf Essential Security is built-in to protect sensitive design files and prevent unauthorised access. Combined with robust hardware and workflow tools, the T650 is ideal for busy design studios and offices requiring consistent output.

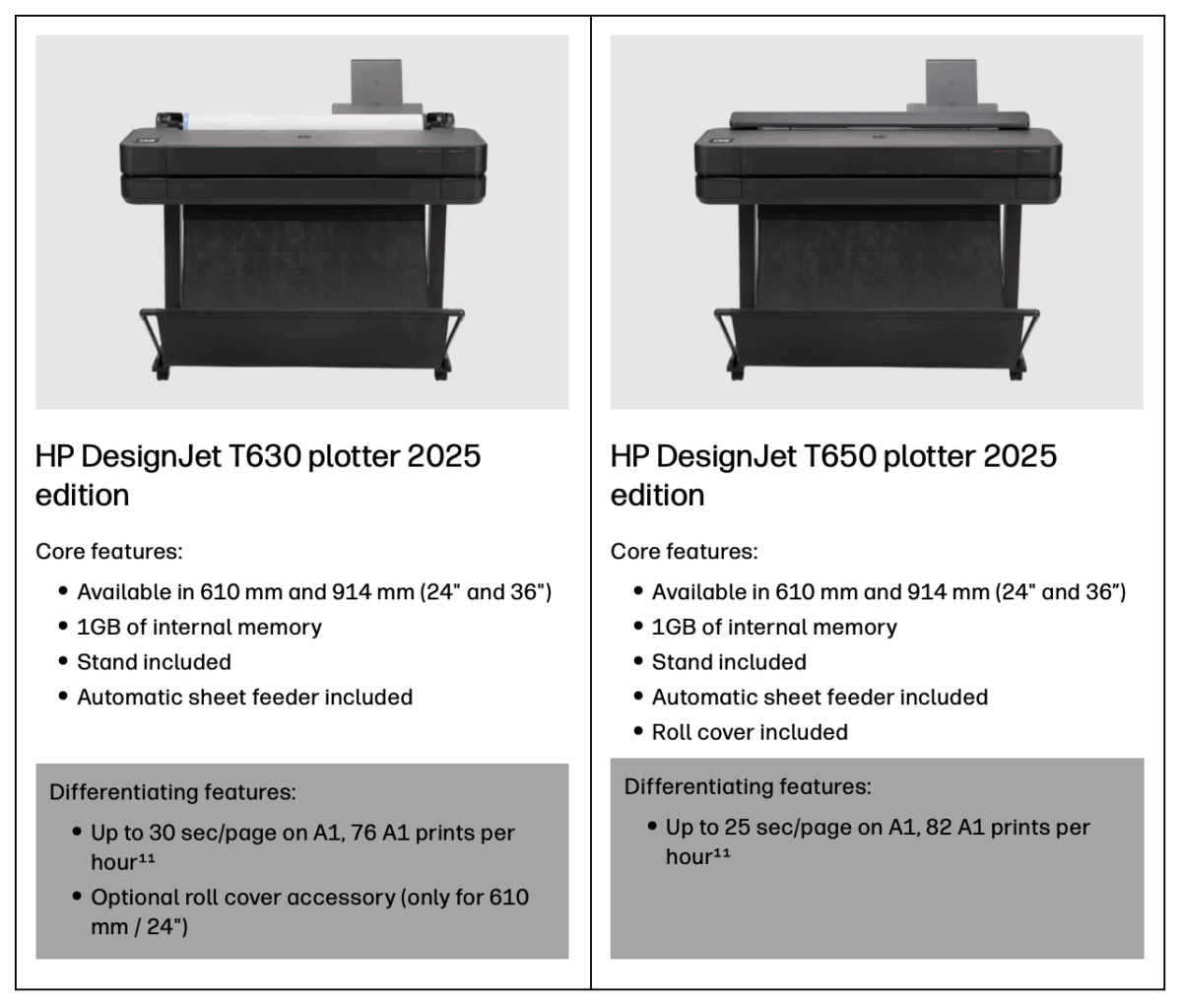

T630 vs T650 – Key differences
While the T630 and T650 share many features, the T650 offers a few key advantages:
- Faster A1 printing: T650 prints in 25 seconds, 5 seconds quicker than the T630
- Roll cover included: Provides media protection and stability, whereas it is optional on the T630
- Extra warranty: The T650 has 2-year onsite warranty as standard, rather than 1-year
These upgrades make the T650 slightly more efficient and convenient for higher-volume professional environments. At Plot it, we like the aesthetics of the roll cover and its ability to keep dust off paper, perfect for lightly used printers (add as an option for T630, or have it included with the T650 as standard).
Key features at a glance
- HP Click-Print solutions: One-click printing from PDFs and other formats
- HP app: Send and monitor print jobs remotely from your mobile device
- Energy savings: Automatic power scheduler and efficient ink routines
- Responsibly designed: Made with recycled plastics and metals
- HP Wolf Essential Security: Protects against cyber threats
- Roll cover: Included for dust protection and media stability
- HP Bright Office Inks: Superior line accuracy and up to 34% expanded colour gamut
Why choose the HP DesignJet T650?
The T650 balances speed, precision, and reliability with a compact footprint and intelligent software integration. Whether producing architectural plans, technical drawings, or high-detail graphics, the T650 ensures your work is fast, accurate, and consistently professional.
