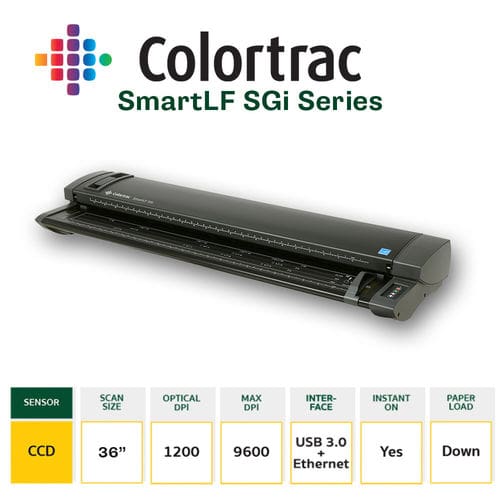

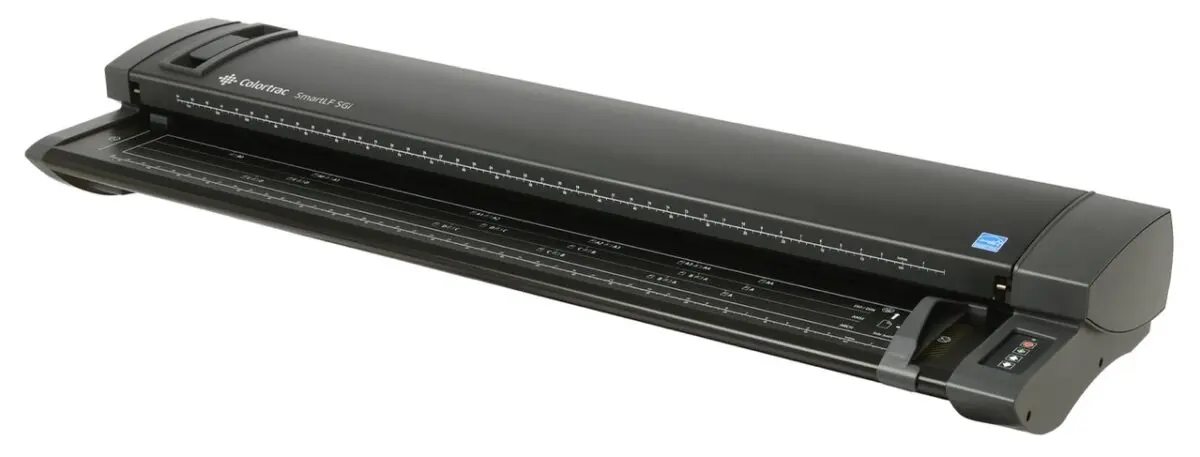

Colortrac SmartLF SGi 36″ Large Format Scanners
The Colortrac SmartLF SGi 36 scanners deliver professional large format scanning with sharp detail, accurate colours, and advanced features for technical drawings, maps, artwork, and photography. Available in monochrome (m), colour (c), and enhanced colour (e) models, these scanners can be upgraded as your needs grow and are available with an optional stand.
Flexible Upgrade Options
-
Start with monochrome scanning and upgrade to colour later.
-
Begin with basic colour scanning and upgrade to enhanced colour for faster, high-volume work.
-
All upgrades are simple, software-based, and completed via email—no tools required.
Key Applications
-
Technical drawings & CAD plans
-
Maps & GIS data
-
Photographs & fine art
-
Posters & thick media documents
High-Quality Scanning Performance
The SmartLF SGi series (36″ and 44″) uses CCD technology with:
-
1200 dpi optical resolution
-
Wide colour gamut and high dynamic range
-
48-bit colour and 16-bit monochrome scanning
Perfect for both precision line detail and vibrant colour graphics.
Advanced Technology for Accuracy
-
SureDrive Paper Transport ensures accurate document positioning.
-
ClearView LED illumination delivers consistent, shadow-free scans.
-
Six CCD cameras across the scan width minimize distortion.
Benefits of LED over Fluorescent Lighting
-
Instant-on LEDs mean no warm-up time.
-
Stable colour temperature for consistent results.
-
Long-life LEDs (50,000+ hours).
-
Energy-efficient design with up to 94% less idle power usage.
-
Mercury-free & eco-friendly operation.
Productivity with SmartWorks Imaging
The new SmartWorks Imaging software is faster and easier to use than SmartWorks Pro. Features include:
-
Intuitive navigation and presets
-
Multi-page thumbnail previews
-
Improved printer drivers
-
Works seamlessly with LINK Remote Control app for tablet-based operation
Professional-Grade Features
-
2GB onboard memory for smooth scanning
-
Gigabit Ethernet & USB 3.0 connectivity
-
Scan-it-once technology for real-time adjustments
-
Intelligent Adaptive Thresholding (IAT) for cleaning dirty documents
-
Preserves delicate originals with minimal transport force
Fast & Efficient Scanning
-
Monochrome: up to 13 inches per second (200 dpi)
-
Express Colour (e model): up to 8 inches per second (200 dpi)
Low Maintenance, Easy Operation
-
Simple plug-and-play USB/Ethernet setup
-
Minimal calibration required thanks to LED stability
-
Easy-to-remove scan glass with magnetic holders
-
Eco-friendly, quiet, and ENERGY STAR® certified
PC and LCD flat screen mounting option combines wide format scanner and computer into a self-contained scan processing station that can be moved around an office as required. The PC and flat screen mounting kit requires the floor stand (see above). Monitor bracket accepts VESA standard monitors and has eight holes arranged in two squares, four at 75mm and four at 100mm measured horizontally and vertically between the centres.

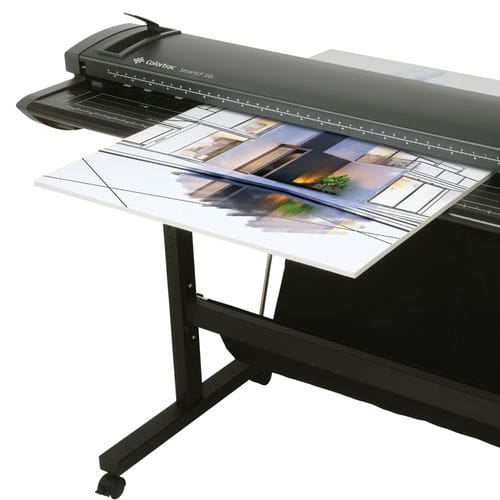

An alternative floor stand that holds the scanner above most popular large format printers including products from HP, Canon, Epson and other printer manufacturers. Repro Stand conveniently holds a PC, flat screen and mini-keyboard and minimizes the combined footprint of scanner and printer creating a practical, high productivity workstation. Scanner height is adjustable through four height settings. There is no limit to the width of the printer. VESA monitor fixings as above.
