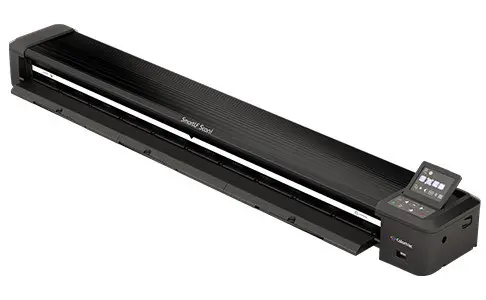

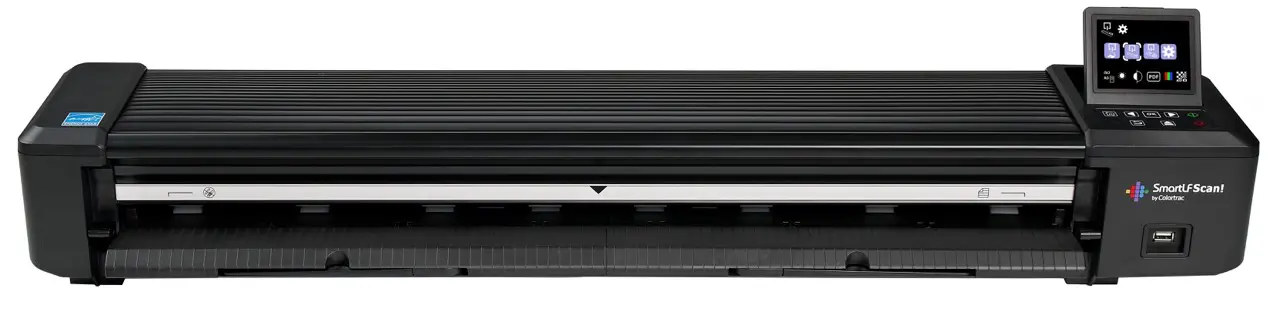

Colortrac SmartLF Scan! scanner

Worlds first self contained scanner available in two models A1 / A0 & weighing in at only 5.2kg

What's Included

Please note the lead time is currently 3-4 weeks due to them being shipped over from Europe.

£2,339.94 inc VAT

£1,949.95 ex VAT

Options

Would you like to talk to a specialist about this product?

All you need to know about the Colortrac SmartLF Scan! scanner

Keep your projects on track with the world’s first truly portable large format scanner.

Based on Colortrac’s patented SingleSensor, SmartLF Scan! has just the functionality you need to scan live documents. SmartLF Scan! gives you reliable and affordable scanning. Easy to learn with no software required, SmartLF Scan! is just what your project needs. Using Colortrac’s patented SingleSensor technology at its core this lightweight solution requires only power to produce stunningly accurate scans which can be saved to USB drive, network or its on-board 6GB storage.

Self-contained scanning

SmartLF Scan! is one of a kind. For the first time, you can scan large documents up to A0 without a computer connected to your scanner.

Works like a digital camera Scan your documents and save them directly to the scanner’s internal memory. Download to a computer later, at your convenience.
No PC required All the scanner processing is completed inside the scanner. No need to link to a PC and use your computer as a processor. Truly portable. All you need is power.
Straightforward operation All the scanner settings are shown on the clear display and can be amended through the intuitive control panel.



Collaboration – whenever and wherever you need it

You are no longer tied to the office. You can collaborate where you need to. Share your ideas with partners then leave the hard copy with them, secure in the knowledge that you have a digital copy to continue working with. Everyone on the project knows where they are. Everyone is up to date.

SmartLF Scan! – working with you

How do you work? On your own? With a small team? In your office? Out and about? SmartLF Scan! works the way you want to, not the other way around.

In your office

At around half the size of comparable large document scanners, SmartLF Scan! easily fits on your desk. A true desktop scanner.

Sharing with colleagues? No problem.

With network connection through a standard Ethernet cable, you can place the scanner in the office wherever you want it. No need to locate the scanner close to you. Position it where it’s most convenient. More than one of you needs to connect to the scanner? That’s fine. Operating like an office printer, you can all link to the scanner rather than working through a dedicated PC.

Out and about

With its own tough, wheeled, carry case for easy transport, SmartLF Scan! is a truly portable scanner. Use it in the office when you are there, and take it to clients and on site when you are out and about. Share your ideas with partners then leave the hard copy with them, secure that you have a digital copy to continue working with. Everyone on the project knows where they are. Everyone is up to date. Perfect for keeping your busy projects on track

  • Scan to internal memory.
  • Scan to USB.
  • Scan to PC, network or Cloud.

Designed for use with good quality documents, SmartLF Scan! is the perfect partner for your live projects.

Different

The world’s first self-contained and portable scanner for documents up to A0 size.

Weighing from only 5.2 kg. Supplied with a specially designed, tough carry case.

SmartLF Scan! 24

SmartLF Scan! 36

In the box

Scan! large format scanner

Tough wheeled carry case

Mains external power supply

Calibration target

RJ45 Ethernet

Scan System

Three modes of operation. TIFF and PDF files are generated inside the scanner. They can be:

1 – stored in the scanner for transfer to a PC later

2 – stored directly on a USB stick

3 – transferred, via wired Ethernet, direct to a network or PC.

When connected to a PC, additional black and white binary files are available. SmartLF Scan! is self-contained and only requires a power supply to operate

Scan software

Scan formats are viewable using native Windows Apps. A small Windows program is supplied to receive live or stored scan files from the scanner. This is not required for scan to USB stick operation

Optical Resolution

600 dpi

DocLogic

Intelligent image optimisation system automatically sets dpi of document or photos according to physical size to maximise image quality and reduce file size

Max Scan Width

24” (609.6 mm)

36” (914.4 mm)

Max Image Length

50″ (1270mm)

Min Media Width / Thickness

6.2” (160mm) / 0.003” (0.07 mm)

6” (150 mm) / 0.003” (0.07 mm)

Max Media Width

26” (660mm) / 0.02” (0.5 mm)

38” (965 mm) / 0.02” (0.5 mm)

Paper sizing (image sizes)

ISO DIN / ARCH / ANSI / automatic width and length

Internal memory

Approx. 6 GB or 8 scans

Scan Accuracy

0.2 % +/-1 pixel

SingleSensor digital imaging technology

SingleSensor is a full width straight-line contact image sensor (US patent #8,922,849) bi-directional long-life LED light system for optimum object illumination and instant-on scanning capability

Operation modes

Scan to internal memory / scan to USB stick (not supplied) / scan to networked computer

Colour space

24-bit sRGB and greyscale (plus bitonal using the pc connection)

Scan speeds (maximum at 200 dpi)

4.5 inch/sec (114.3mm/sec) greyscale and 3 in/sec (76.2mm/sec) for colour

Paper Path

Centred, face-up, front entry

Data interfaces

Front: USB2 socket for scan to USB memory stick. Rear: Ethernet RJ45 GBit for scan to computer over network

Power Requirements

External power supply Input: 100~240VAC, 50-60Hz, auto-sensing +/-10%, Output: 3.42A at 19V, Scanner power consumption: 19.4 W (scanning), 10.2W (standby), 0.05W (sleep). Energy Star qualified

Environment

Operating temperature 10oC – 35oC, Relative Humidity 10% – 90% (non-condensing)

Weight & Dimensions (WxHxD)

Scanner only 11.5 lbs (5.2 kg) / 34.3 x 6.3 x 5 inches (870 x 160 x 126 mm) Scanner incl. case: 22.3 lbs (10.1 kg) / 38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm)

Scanner only 15.4 lbs (7 kg) / 46.3 x 6.3 x 5 inches (1175 x 160 x 126 mm) Scanner incl. case: 30.9 lbs (14 kg) / 50.4 x 10.4 x 8.2 inches (1280 x 265 x 208 mm)

Host Platform

Windows 10, Windows 8, Windows 7, 32-bit and 64-bit architectures

Certifications

ENERGY STAR qualified, CB, CE, CCC, FCC, UL, RoHS compliant

Warranty

12 months / 30,000 linear metres whichever comes first
